Deck And Height Adjusting

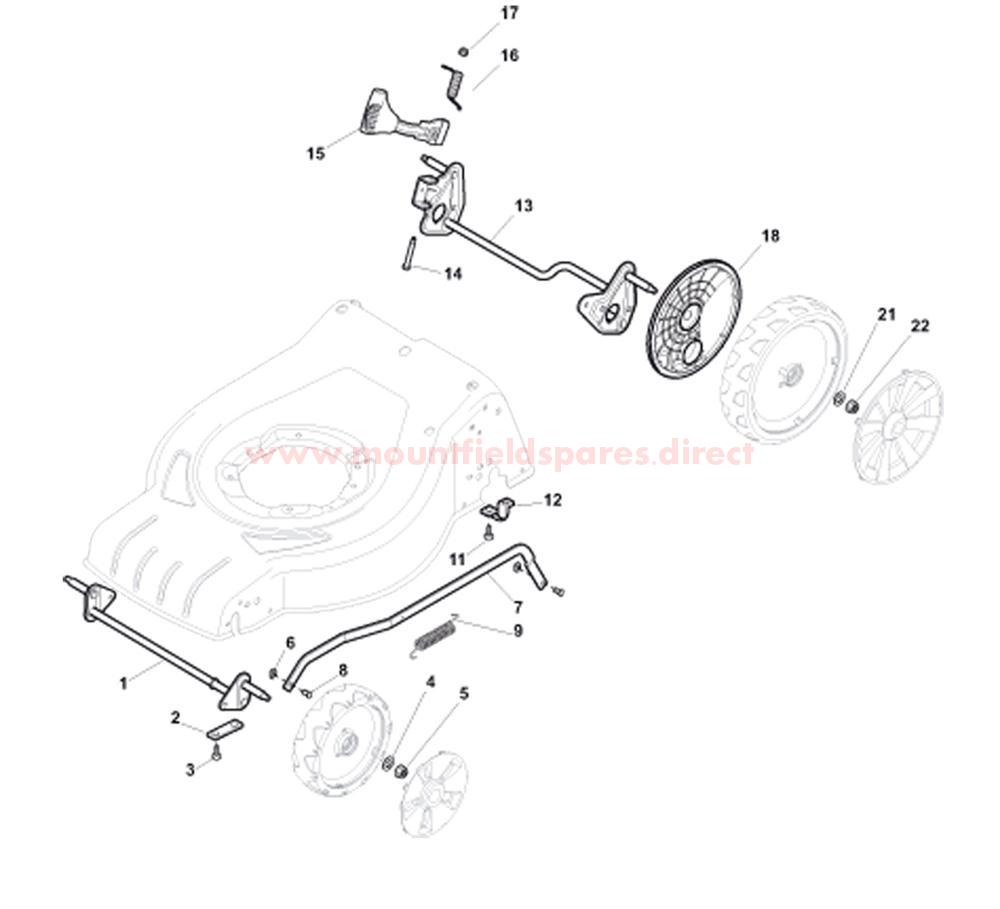

Deck And Height Adjusting assembly details for Mountfield S460PD (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001381302821/0FRONT WHEELS AXLE TO S/N 20BA2WBH054315£29.52 Add to
002322545142/0AXLE PLATE£2.84 Add to
003112728698/0SELF-TAPPING SCREW K50 x 20£2.84 Add to
004112521350/0WASHER M8 8.4 x 16 x 1.6£2.84 Add to
005112154220/0LOW SELF-LOCKING NUT M8£2.84 Add to
006112436051/0PIN PLATE D=8£1.65 Add to
007322869683/0HEIGHT ADJUST TIE BAR£18.92 Add to
008122519820/0PIN£3.47 Add to
009122446193/0SPRING£5.34 Add to
011112728698/0SELF-TAPPING SCREW K50 x 20£2.84 Add to
012322545152/0AXLE BRACKET£2.84 Add to
013381302817/0REAR WHEEL AXLE TO S/N 20BA2WBH061216£32.02 Add to
014122534131/0PIN£2.84 Add to
015381003357/0REAR HEIGHT ADJUST LEVER£6.93 Add to
016122446192/0SPRING£3.26 Add to
017112154510/0LOW SELF-LOCKING NUT (M6)£2.84 Add to
018322600205/1INNER WHEEL COVER D=240£4.57 Add to
021112521350/0WASHER M8 8.4 x 16 x 1.6£2.84 Add to
022112154220/0LOW SELF-LOCKING NUT M8£2.84 Add to
