Deck And Height Adjusting

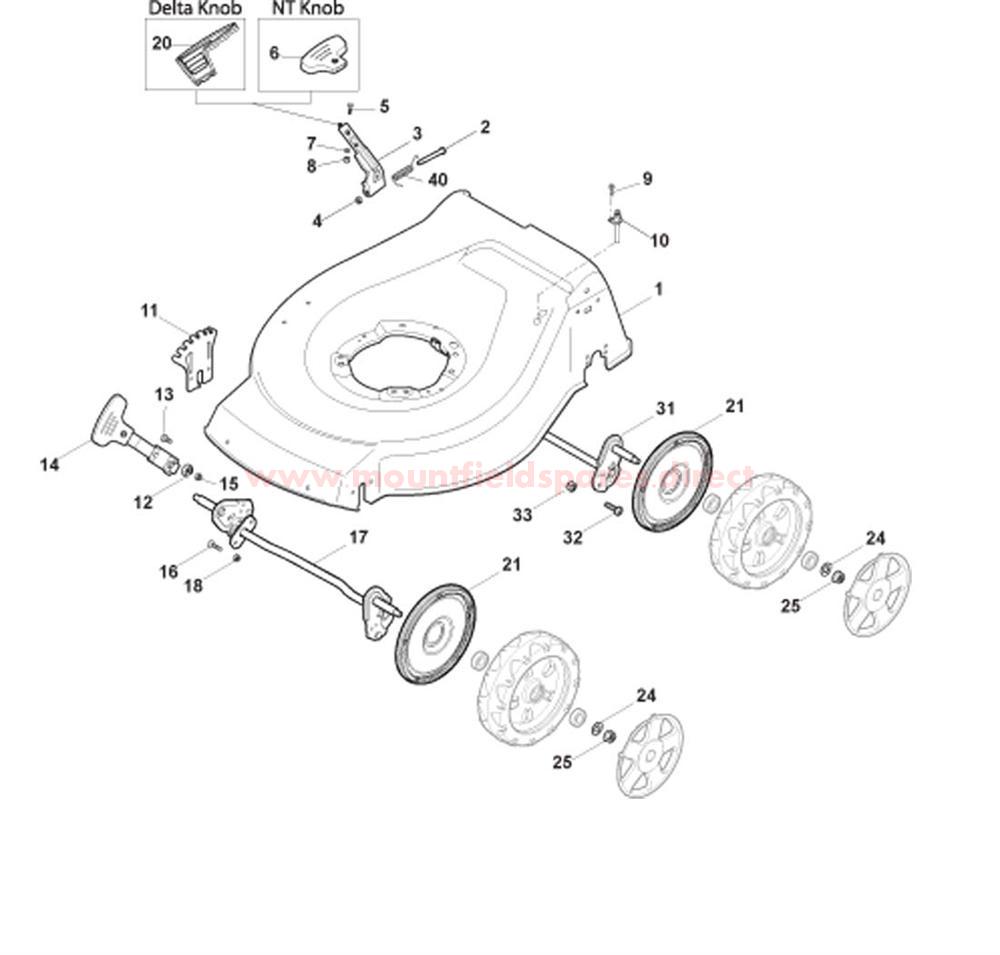

Deck And Height Adjusting assembly details for Mountfield M4820HP (20141125) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004536/0STEEL DECK NT48 [RED]£152.40 Add to
002112789000/0SCREW TE M5 x 12£2.46 Add to
003381003339/0HEIGHT ADJUST LEVER£10.60 Add to
004112154330/0LOW SELF-LOCKING NUT M5£2.46 Add to
005112788512/0SCREW M4 x 12£2.46 Add to
006322394503/0HEIGHT ADJUST KNOB£2.70 Add to
007112521310/0WASHER M4 4.3 x 9 x 0.8£2.46 Add to
008112150000/0SELF-LOCKING NUT M4£2.46 Add to
009112728450/0SELF-TAP SCREW 4.8 x 19£1.43 Add to
010322034002/0WASHING CONNECTION£2.46 Add to
011322735587/0HEIGHT ADJUST QUADRANT£4.74 Add to
012122171002/0AXLE SPACER£2.46 Add to
013112789000/0SCREW TE M5 x 12£2.46 Add to
014381003351/0HEIGHT ADJUST LEVER£15.18 Add to
015112154330/0LOW SELF-LOCKING NUT M5£2.46 Add to
016112727803/0SCREW TCB TORX M6 x 14£2.46 Add to
017381002881/1Axle, Front Wheels (OBSOLETE)N/A
018112154510/0LOW SELF-LOCKING NUT (M6)£2.46 Add to
020322394522/0Knob (OBSOLETE)N/A
021322600145/0INNER WHEEL COVER D=200£2.64 Add to
024112521350/0WASHER M8 8.4 x 16 x 1.6£2.46 Add to
025112154220/0LOW SELF-LOCKING NUT M8£2.46 Add to
031381302825/0REAR WHEELS AXLE NTD TS D=200£18.84 Add to
032112727803/0SCREW TCB TORX M6 x 14£2.46 Add to
033112154510/0LOW SELF-LOCKING NUT (M6)£2.46 Add to
040122446192/0SPRING£2.82 Add to
