Deck And Height Adjusting

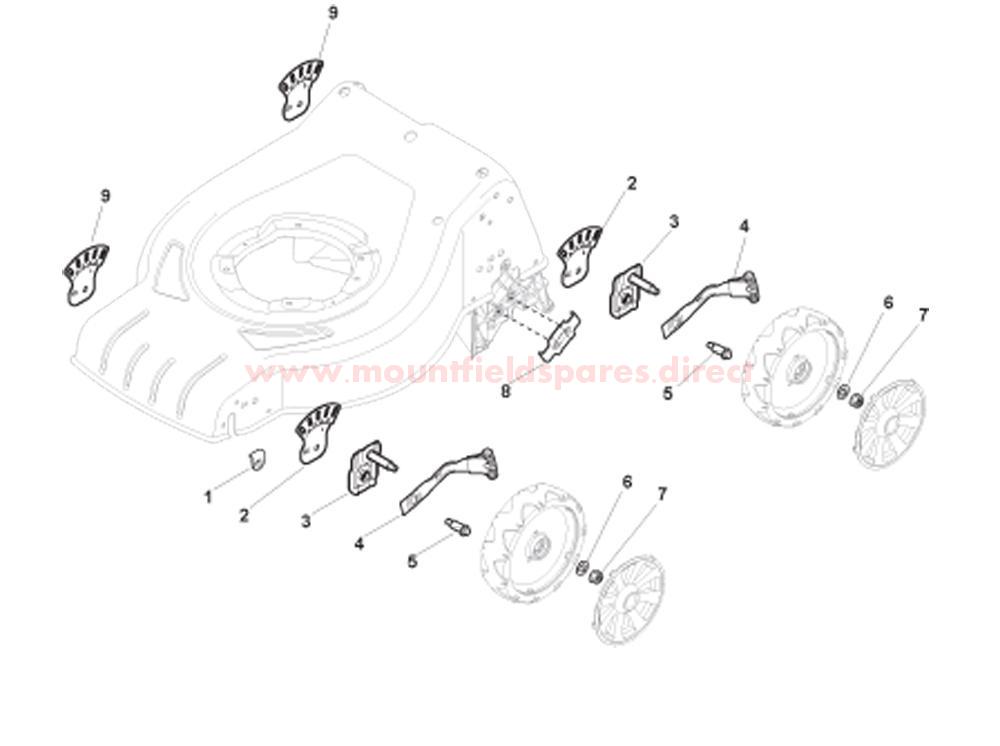

Deck And Height Adjusting assembly details for Mountfield HP425 (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001322545189/0HANDLE FIXING PLATE£2.90 Add to
002322735597/1HEIGHT ADJUST QUADRANT L/H£3.35 Add to
003381005141/0WHEEL STUB AXLE£11.45 Add to
004381003354/0HEIGHT ADJUST LEVER£7.28 Add to
005122519811/0WHEEL BOLT£2.90 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.90 Add to
007112154220/0SELF-LOCK NUT M8£2.90 Add to
008322545211/0HANDLE FIXING PLATE£3.65 Add to
009322735595/1HEIGHT ADJUST QUADRANT R/H£3.78 Add to
