Handle, Lower Part

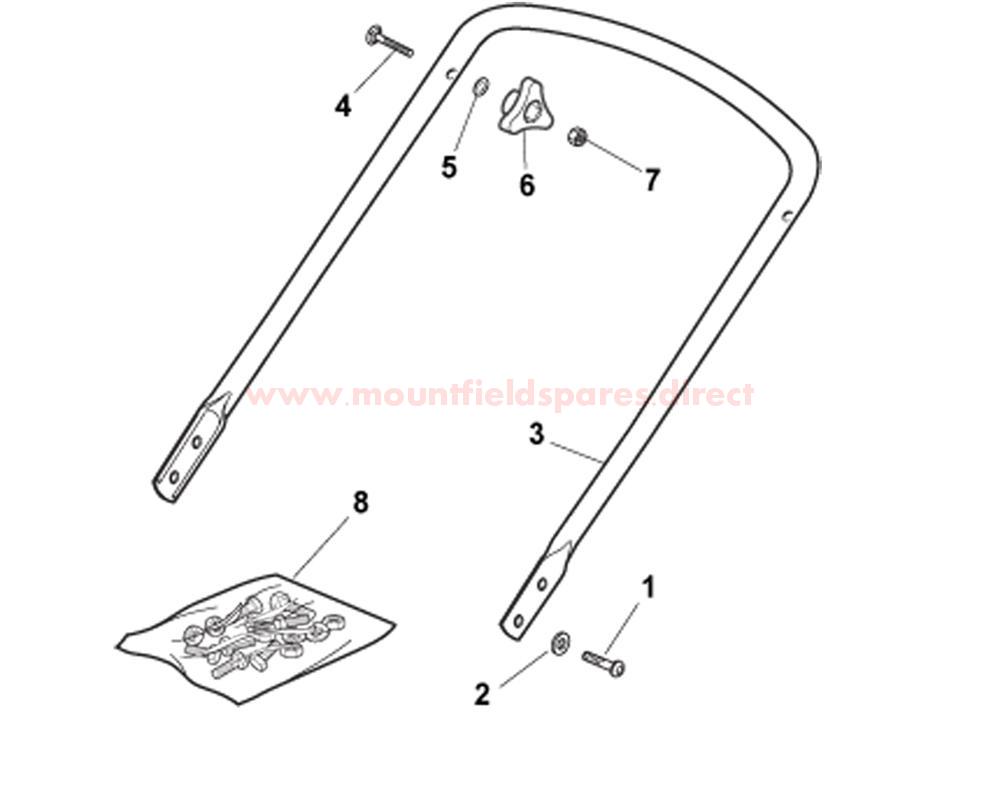

Handle, Lower Part assembly details for Mountfield HP183 (20140317) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112760605/0SCREW TBEI M8 X 20MM£2.53 Add to
002112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
003381006686/0LOWER HANDLE£51.60 Add to
004112819121/0CARRIAGE BOLT M8 X 55£1.96 Add to
005122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
006122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
007112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
