Gearbox and Belt

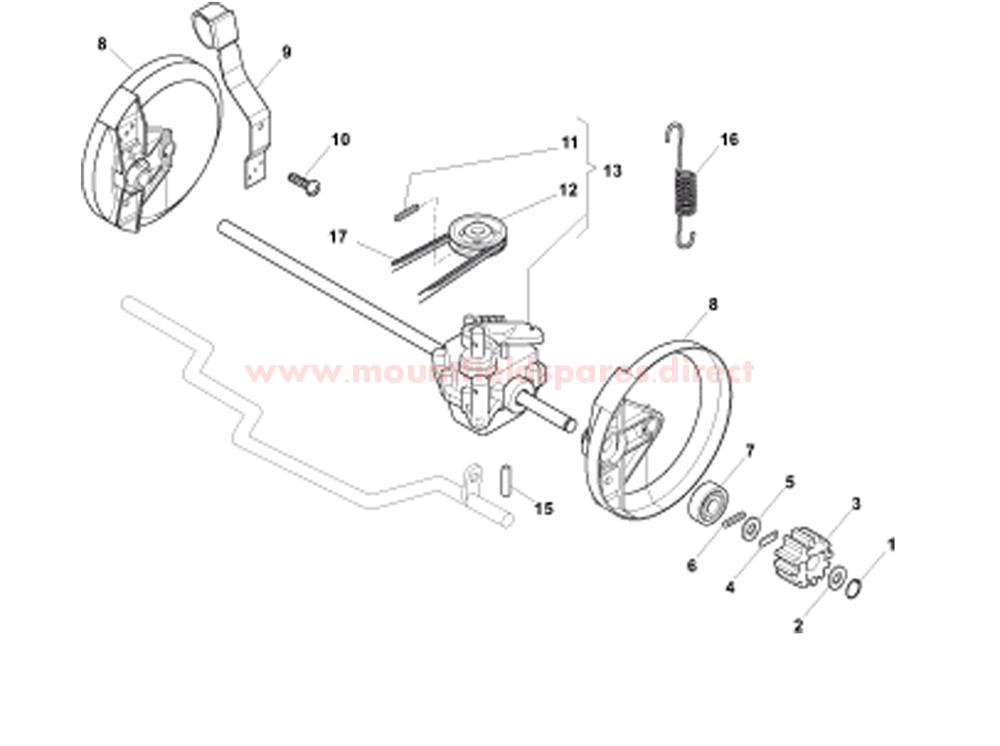

Gearbox and Belt assembly details for Mountfield SP536 (20130205) 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112608520/0	CIRCLIP D=11	£2.54	Add to
002	322160520/0	DUST COVER	£2.06	Add to
003	122570125/0	RIGHT/LEFT PINION GEAR	£15.00	Add to
004	122076645/0	DRIVE KEY 4 x 8 x 15	£2.06	Add to
005	322160520/0	DUST COVER	£2.06	Add to
006	112622620/0	CYLINDRICAL PIN D=4 x 20	£1.79	Add to
007	122122202/0	BEARING D12	£2.47	Add to
008	322600106/1	INNER WHEEL COVER D=190	£7.10	Add to
009	381003303/0	REAR HEIGHT ADJUST LEVER	£17.86	Add to
010	112728689/0	SCREW KA50 x 12	£1.79	Add to
011	112713801/0	DOWEL PIN M6 x 8	£2.74	Add to
012	122601909/0	PULLEY	£6.01	Add to
013	181003093/1	GEARBOX [BLACK]	£103.85	Add to
015	122753001/0	PIN D=4 x 32	£2.06	Add to
016	122450438/0	SPRING	£4.10	Add to
017	135064100/0	TRAPEZOIDAL BELT Z30	£10.50	Add to
