Axles and Wheels

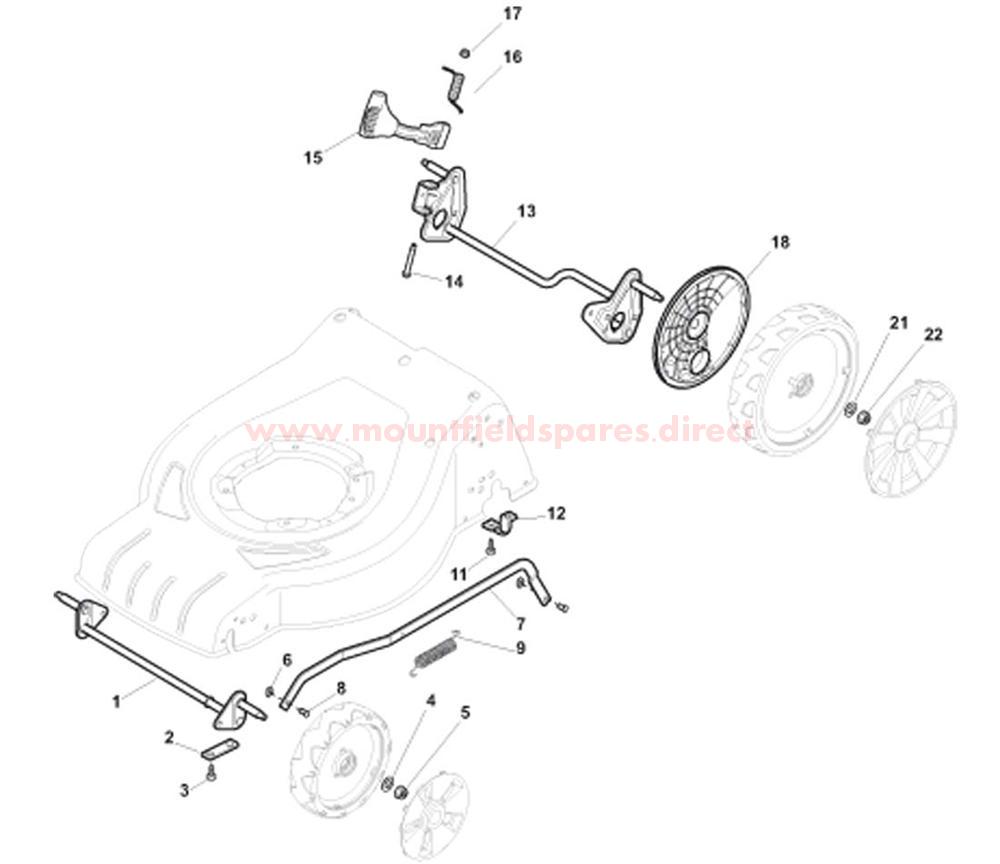

Axles and Wheels assembly details for Mountfield SP533 (20130205) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302853/1ASS.FRONT AXLE WHEELS D200 CRUISER 53£34.35 Add to
002322545142/0REAR WHEEL AXLE STOP PLATE£2.06 Add to
003112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
004112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
007322869679/0HEIGHT ADJUST TIE BAR£26.16 Add to
008122519823/0WHEEL CONTROL ROD PIN£2.74 Add to
009122446193/0SPRING£4.99 Add to
011112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
012322545152/0AXLE BRACKET£2.06 Add to
013381302849/0REAR WHEEL AXLE£56.21 Add to
014122534131/0PIN£2.06 Add to
015381003357/0REAR HEIGHT ADJUST LEVER£6.79 Add to
016122446192/0SPRING£2.47 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018322600240/0INNER WHEEL COVER D=280£5.45 Add to
021112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
