Deck Red

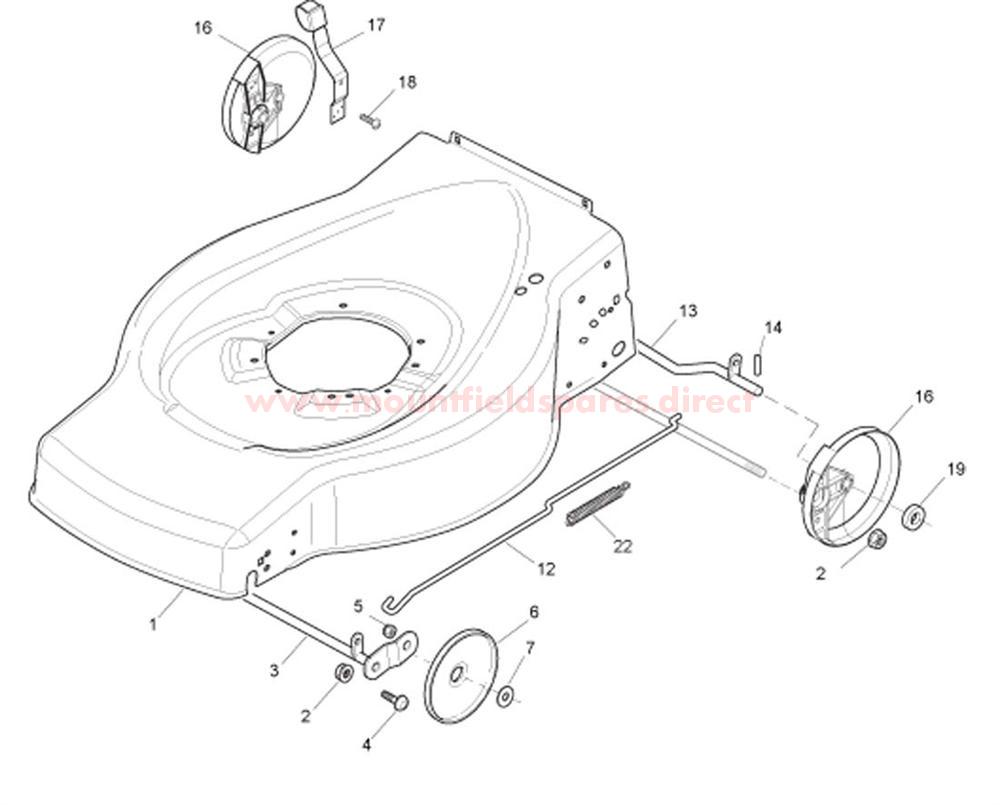

Deck Red assembly details for Mountfield SP454 (20130205) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002538/0STEEL DECK ES/ESL46 [RED]£105.39 Add to
002122131750/0NUT M8£1.96 Add to
003381000153/0FRONT WHEELS AXLE£52.18 Add to
004112760600/0SCREW M8 x 16£1.13 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
006322600095/0INNER WHEEL COVER D=165£1.96 Add to
007325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£1.96 Add to
012122033317/0HEIGHT ADJUST TIE ROD£15.19 Add to
013381000159/0REAR WHEELS AXLE£23.76 Add to
014122753001/0PIN D=4 x 32£1.96 Add to
016322600106/1INNER WHEEL COVER D=190£6.76 Add to
017381003303/0REAR HEIGHT ADJUST LEVER£17.01 Add to
018112728689/0SCREW KA50 x 12£1.70 Add to
019322170622/0WHEEL SPACER£1.70 Add to
022122446186/0SPRING£4.55 Add to
