Conveyor assembly details for Mountfield HP 180 (20130205) 2013 model

Parts list

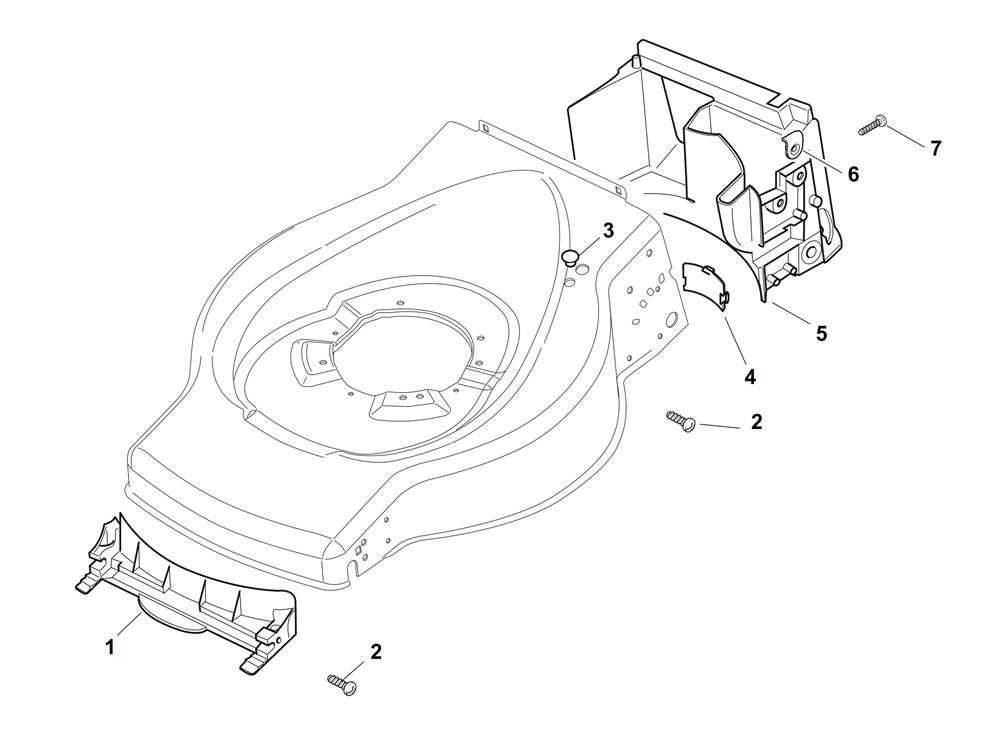

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001322108271/0PLASTIC FRONT BAFFLE£15.18 Add to
002112728686/0TAPTITE SCREW KA50 X 16£1.65 Add to
003322820077/0PVC DECK CAP£6.24 Add to
004322109532/0GEARBOX COVER£2.84 Add to
005322108272/2PLASTIC REAR BAFFLE£19.61 Add to
006322545189/0HANDLE FIXING PLATE£2.84 Add to
007112728686/0TAPTITE SCREW KA50 X 16£1.65 Add to
