Blade

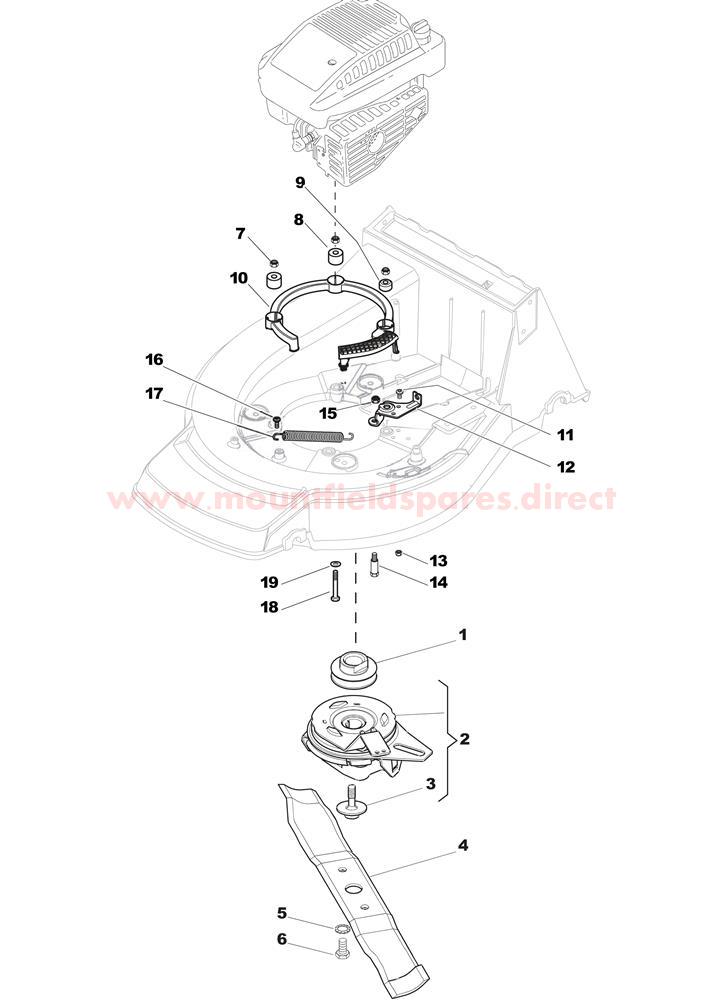

Blade assembly details for Mountfield SP534HWBBC (20121602) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	122601923/0	ENGINE HONDA PULLEY NP53	£92.95	Add to
002	118399052/0	BLADE BRAKE CLUTCH GABY GXV 160	£300.07	Add to
003	112735460/0	CLUTCH BOLT	£9.07	Add to
004	181004382/0	MULCHING BLADE L=506mm BBC	£17.04	Add to
005	112523070/0	WASHER M8 8.5 x 32 x 2.5	£2.06	Add to
006	112794110/1	SCREW TE M10 x 1.5 L=20	£2.18	Add to
007	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
008	122170835/0	ENGINE SPACER	£6.63	Add to
009	122170836/1	ENGINE SPACER	£8.44	Add to
010	322170961/0	Protection (OBSOLETE)	N/A
011	112735664/0	SCREW M6 x 16	£2.02	Add to
012	322551665/0	CLUTCH CONTROL PLATE	£4.78	Add to
013	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
014	125580018/0	TRANSMISSION BELT GUIDE PIN	£4.52	Add to
015	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
017	122446188/0	SPRING	£10.66	Add to
018	112692080/0	HEX-HEAD SCREW M8 x 90	£2.06	Add to
019	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
