Rear Drive

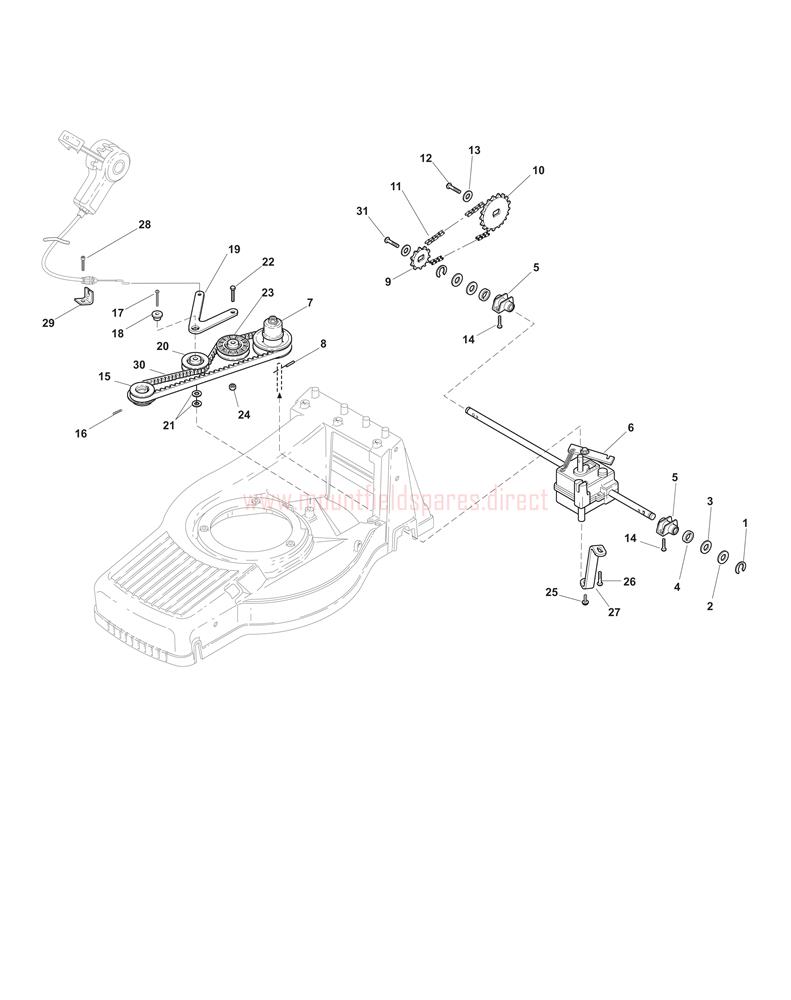

Rear Drive assembly details for Mountfield SP505R (20121602) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112000957/0CIRCLIP D=10£2.59 Add to
002122671659/0WASHER M12 13 x 24 x 2£2.06 Add to
003112520032/0WASHER 12 x 18 x 1£2.06 Add to
004119035152/0SEAL RING 12 x 18 x 4£5.19 Add to
005322785153/0GEARBOX SUPPORT BRACKET£16.10 Add to
006181003087/1GEARBOX 4 SPEED£241.29 Add to
007122601916/0VARIATOR PULLEY (OBSOLETE)N/A
008112645700/0PIN£2.06 Add to
0091111-3423-01SPROCKET 10T£15.13 Add to
0101111-3424-01SPROCKET 21T£18.28 Add to
0111111-3562-01ROLLER CHAIN (RIVETED)£20.45 Add to
012112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
013112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
014112735664/0SCREW M6 x 16£2.02 Add to
015122601920/0DRIVE ENGINE PULLEY D=25£47.97 Add to
016112714312/0DOWEL PIN M6 x 12£2.06 Add to
017112735669/0SCREW TCB TORX M6 x 50£2.06 Add to
018122671656/0WASHER£6.42 Add to
019322320001/0TENSION ARM (OBSOLETE) (OBSOLETE)N/A
020122601915/0TENSION PULLEY£21.82 Add to
022112674550/0SCREW TE M6 x 30£2.06 Add to
023122601914/0BELT GUIDE PULLEY£21.95 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
025112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
027322778409/0GEARBOX SUPPORT BRACKET£15.81 Add to
029322806619/0WZ SPEED CABLE FIX.SUPPORT TURBO 4S£5.05 Add to
030135064378/0TRAPEZOIDAL BELT XPZ LP=780£14.45 Add to
031112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
