Rear Drive

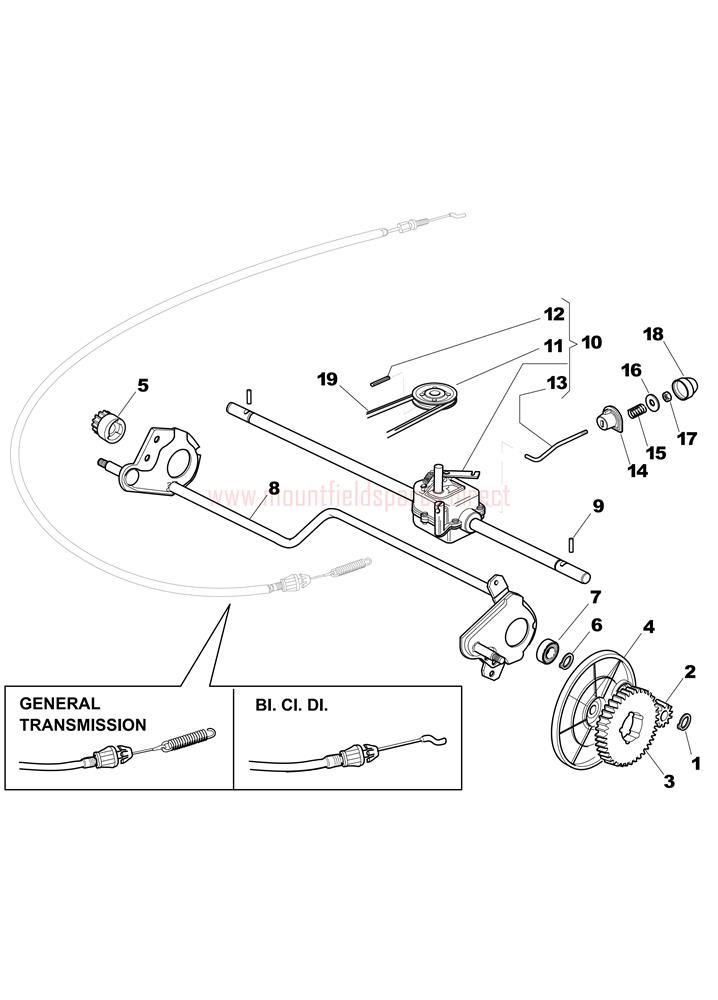

Rear Drive assembly details for Mountfield SP500 (20121602) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112608600/0CIRCLIP D=12£2.08 Add to
002122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
004322600160/0WHEEL COVER D=300£5.21 Add to
005122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
007119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
008381002863/0REAR WHEELS AXLE ZNW NP53£101.13 Add to
009122753000/0PIN D=5.2 x 25.65£2.06 Add to
010181003079/1GEARBOX [BLACK]£98.08 Add to
011122601909/0PULLEY£6.01 Add to
012112645705/0ROLL PIN D=5 x 32£2.02 Add to
013122033281/0GEAR ADJUSTMENT ROD£4.37 Add to
014122041957/1SPRING GUIDE BUSH£2.06 Add to
015122450063/0SPRING£2.06 Add to
016322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018122110230/0HUB COVER£2.06 Add to
019135064150/0TRAPEZOIDAL BELT Z32£11.59 Add to
