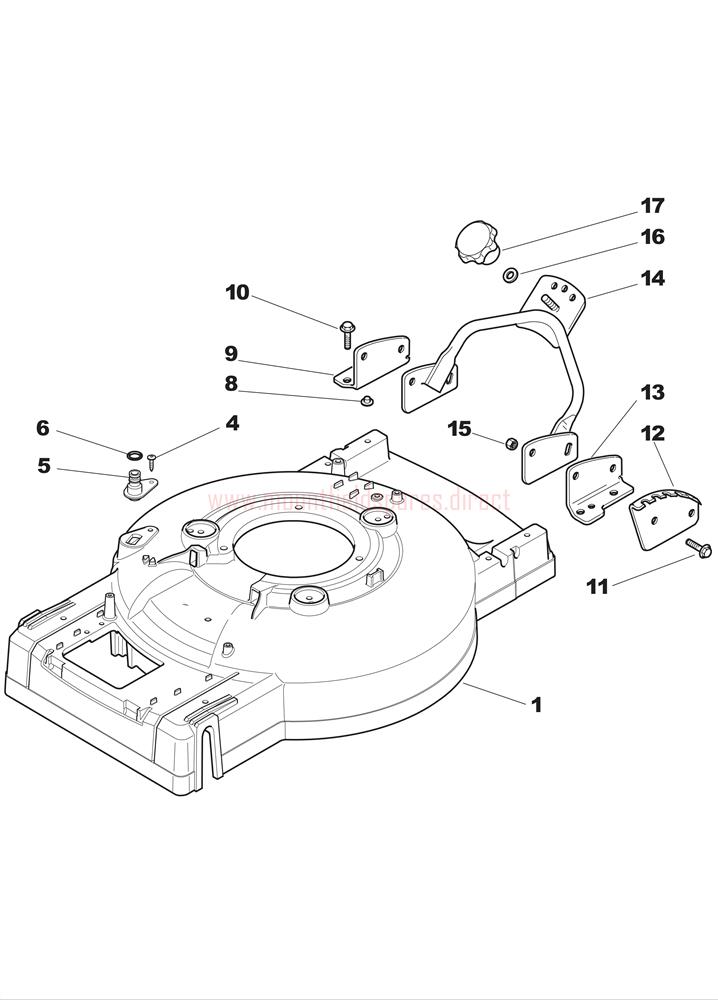

Deck/Handle, Lower Part

Deck/Handle, Lower Part assembly details for Mountfield MULTICLIP530PD (20121602) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381004736/0	ALUMINIUM DECK MC53 [GREY]	£417.57	Add to
004	112728519/0	SELF-TAP SCREW TCB 5.5 x 16	£1.79	Add to
005	112728519/0	SELF-TAP SCREW TCB 5.5 x 16	£1.79	Add to
006	119035000/0	O RING 10.77 x 2.62	£5.46	Add to
008	322820054/0	PLASTIC CAP [WHITE]	£3.69	Add to
009	322778417/0	RIGHT HANDLE BRACKET	£10.09	Add to
010	112735595/0	SCREW	£4.01	Add to
011	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
012	322735569/0	HEIGHT ADJUST QUADRANT	£16.36	Add to
013	322778415/0	LEFT HANDLE BRACKET	£17.86	Add to
014	181006365/1	Handle, Middle Part Black (OBSOLETE)	N/A
015	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
016	112523080/0	WASHER M10 11 x 30 x 2.5	£2.06	Add to
017	322399813/0	HANDLE KNOB [BLACK]	£11.87	Add to
