Deck And Height Adjusting

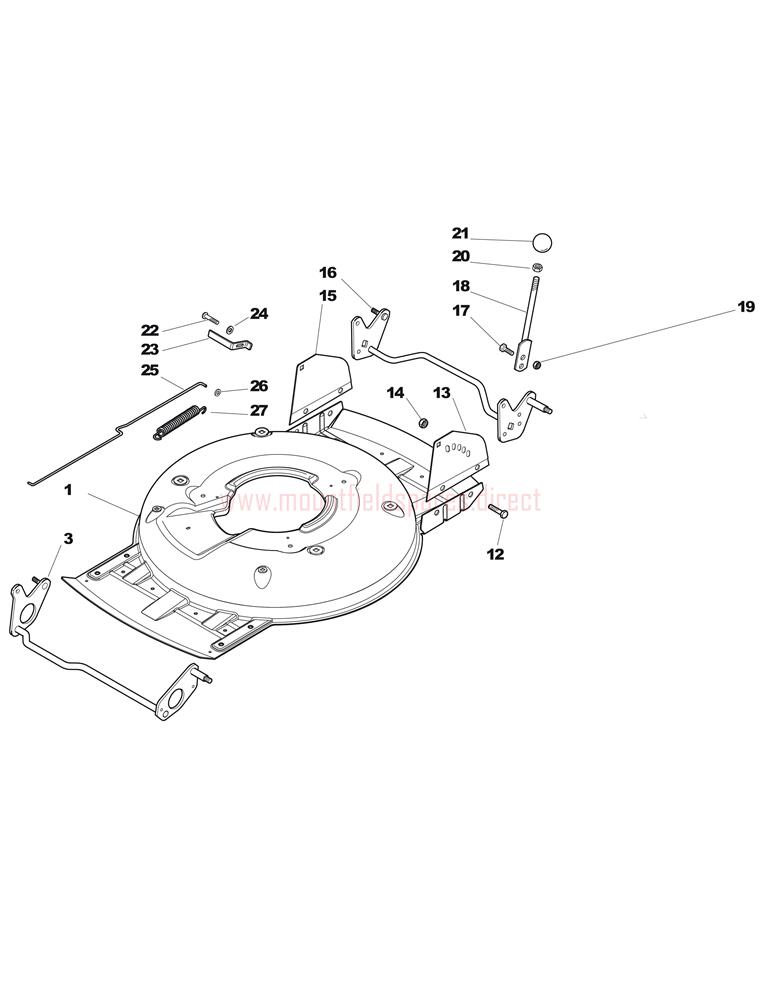

Deck And Height Adjusting assembly details for Mountfield MULTICLIP500PD (20121602) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	81002909/1	Deck Grey (OBSOLETE)	N/A
003	381002849/0	FRONT WHEELS AXLE	£39.80	Add to
012	112791011/0	SCREW TE M6x14 UNI 5739 ACC.8.8	£1.79	Add to
013	381545105/0	LEFT REAR PLATE	£10.50	Add to
014	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
015	322545167/0	REAR RX PLATEHEIGHT ADJUST MCS 50	£8.42	Add to
016	381302861/1	REAR WHEELS AXLE	£45.26	Add to
017	112789000/0	SCREW TE M5 x 12	£2.06	Add to
018	381003323/0	HEIGHT ADJUST LEVER	£16.36	Add to
019	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
020	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
021	322399812/0	BALL KNOB	£3.41	Add to
022	112735661/0	SCREW TCB TORX M6 x 10	£2.06	Add to
023	322551529/0	WHEELS CLEANING PLATE	£4.10	Add to
024	112521330/0	WASHER M6 6.4 x 12 x 1.6	£2.06	Add to
025	122033329/0	HEIGHT ADJUST ROD	£9.62	Add to
026	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
027	122446184/0	SPRING	£5.21	Add to
