Deck And Height Adjusting

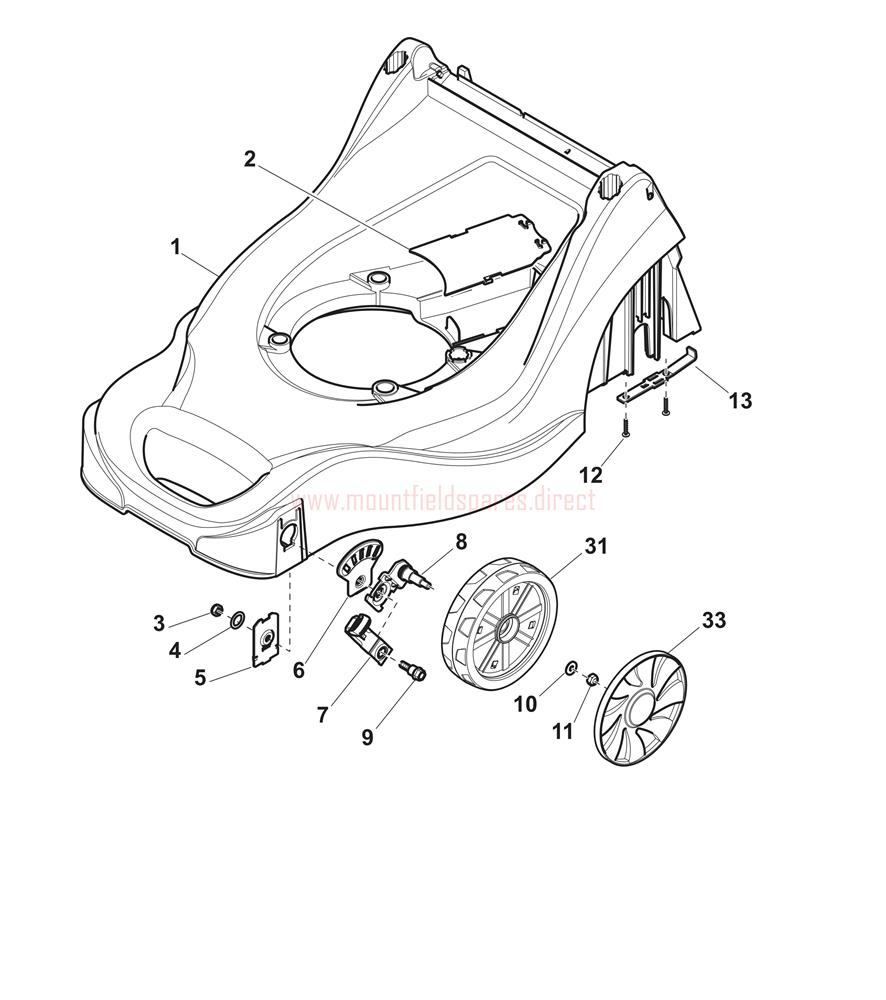

Deck And Height Adjusting assembly details for Mountfield HP414 (20121602) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001322066750/0PLASTIC DECK [RED] EP414£77.95 Add to
002322060245/0BELT PROTECTION GUARD EP41£3.69 Add to
003112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
004112540060/0SERRATED LOCK WASHER M8£2.06 Add to
005322785361/0SUPPORT PLATE£2.54 Add to
006322735599/0HEIGHT ADJUST QUADRANT£4.52 Add to
007381003352/0HEIGHT ADJUST LEVER£7.41 Add to
008381005089/0STUB AXLE£7.05 Add to
009122519811/0WHEEL BOLT£2.06 Add to
010112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
012112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
013322608563/0REAR BRACKET£3.00 Add to
031322686100/0DELTA WHEEL D=175£6.69 Add to
033322110642/0HUB CAP D=175 [GREY]£2.74 Add to
