Wheel and Hub Cap

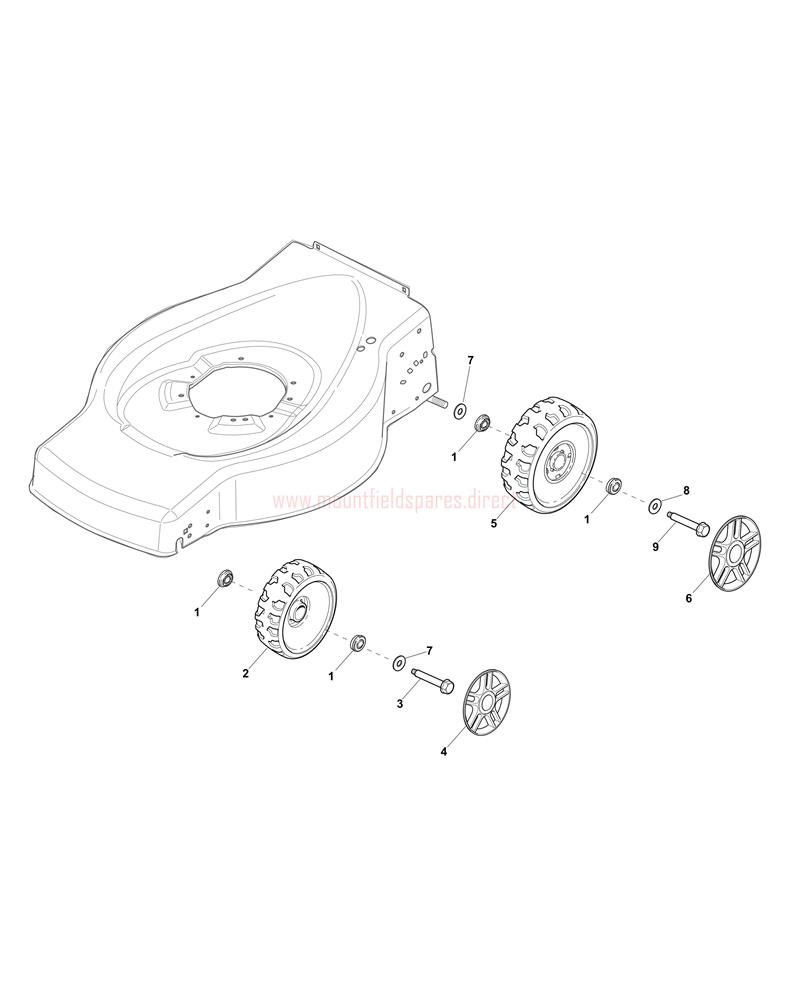

Wheel and Hub Cap assembly details for Mountfield HP184 (20121602) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001122122206/0BEARING£2.32 Add to
002322686091/1WHEEL D=165mm£7.10 Add to
003122524341/0WHEEL BOLT£2.87 Add to
004322110491/0HUB CAP D=170 [GREY]£2.47 Add to
005322686092/0WHEEL D=190£6.27 Add to
006322110492/0HUB CAP D=210 [GREY]£2.61 Add to
007122675100/0WASHER D=12.6 x 24 x 0.6£1.91 Add to
008112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
009112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
