Rear Drive

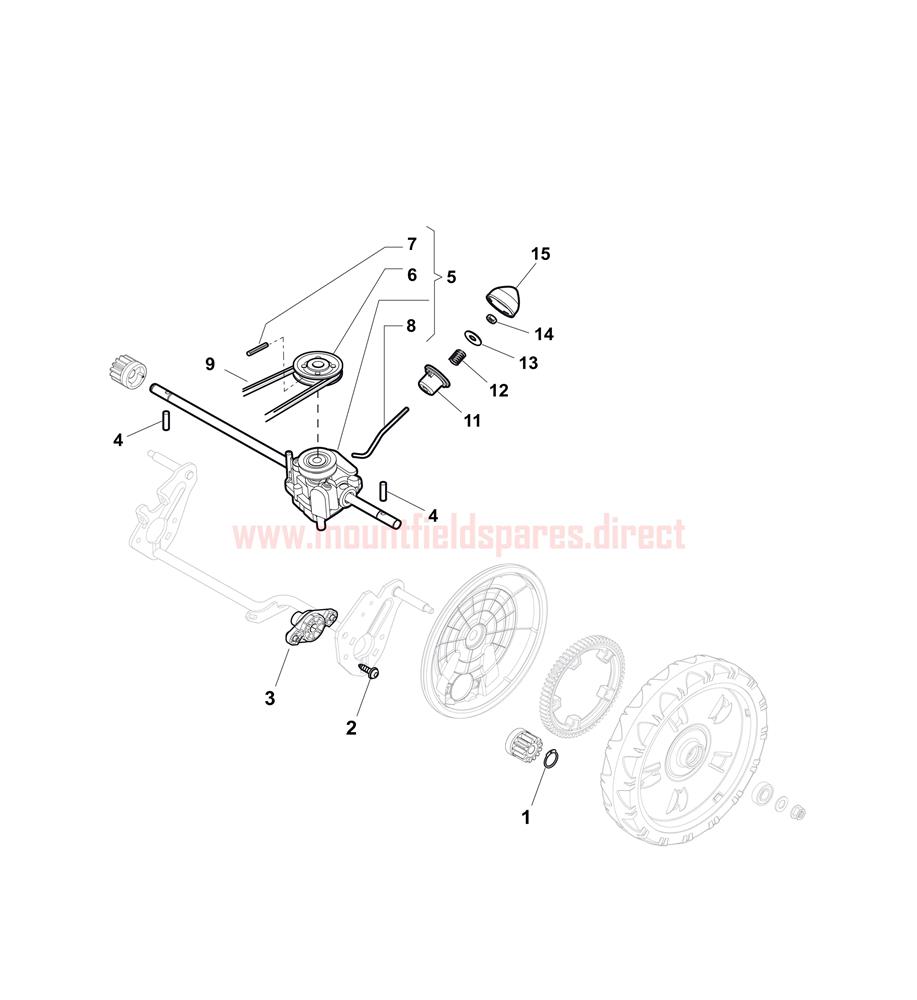

Rear Drive assembly details for Mountfield 4820PD BW (20121602) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001112608600/0CIRCLIP D=12£2.08 Add to
002112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
003322042063/1AXLE BUSH£2.78 Add to
004122753000/0PIN D=5.2 x 25.65£2.06 Add to
005181003092/0GEARBOX [BLACK]£114.74 Add to
006122601909/0PULLEY£6.01 Add to
007112645700/0PIN£2.06 Add to
008122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
009135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
011122041957/1SPRING GUIDE BUSH£2.06 Add to
012122450063/0SPRING£2.06 Add to
013322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
014112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
015122110230/0HUB COVER£2.06 Add to
