Handle, Lower Part

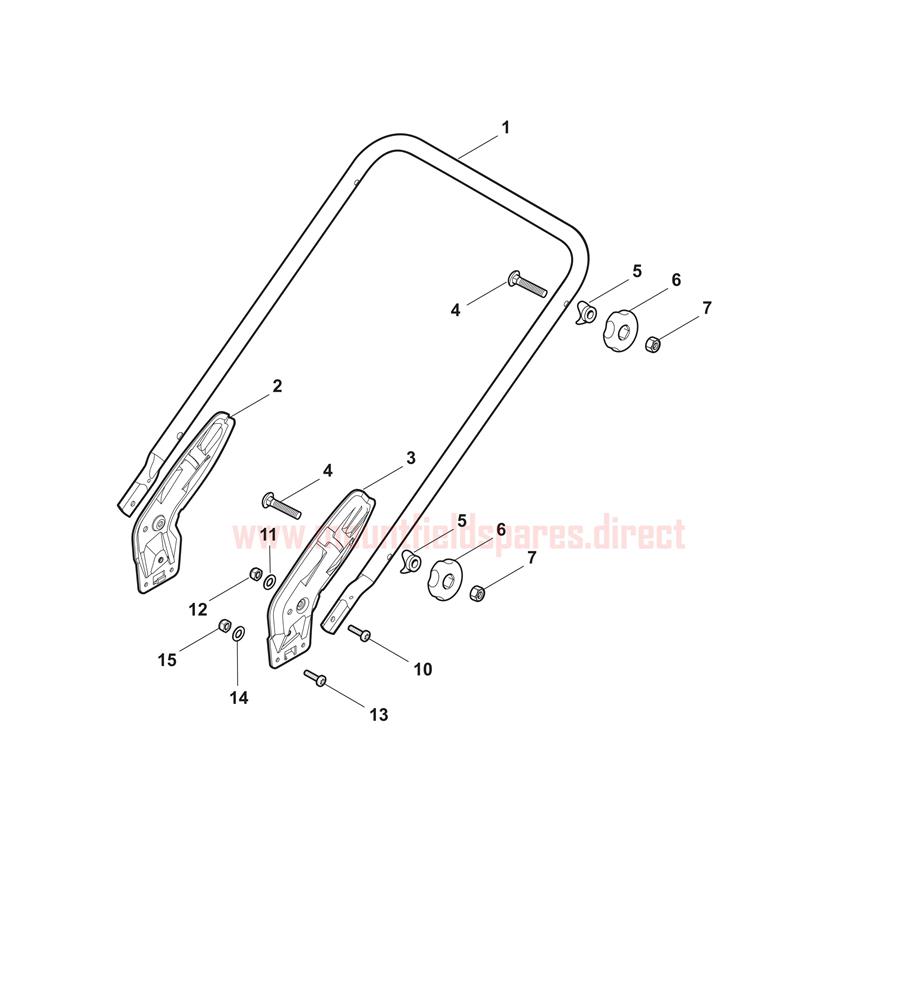

Handle, Lower Part assembly details for Mountfield 4820PD BW (20121602) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006889/0	LOWER HANDLE [BLACK] NTD48	£24.95	Add to
002	381005125/0	RIGHT HANDLE BRACKET	£10.66	Add to
003	381005127/0	LEFT HANDLE BRACKET	£12.14	Add to
004	112819121/0	CARRIAGE BOLT M8 X 55	£1.96	Add to
005	122680006/1	PLASTIC WASHER	£1.91	Add to
006	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
007	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
010	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
011	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
012	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
013	112727803/0	SCREW TCB TORX M6 x 14	£2.06	Add to
014	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
015	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
