Rear Drive

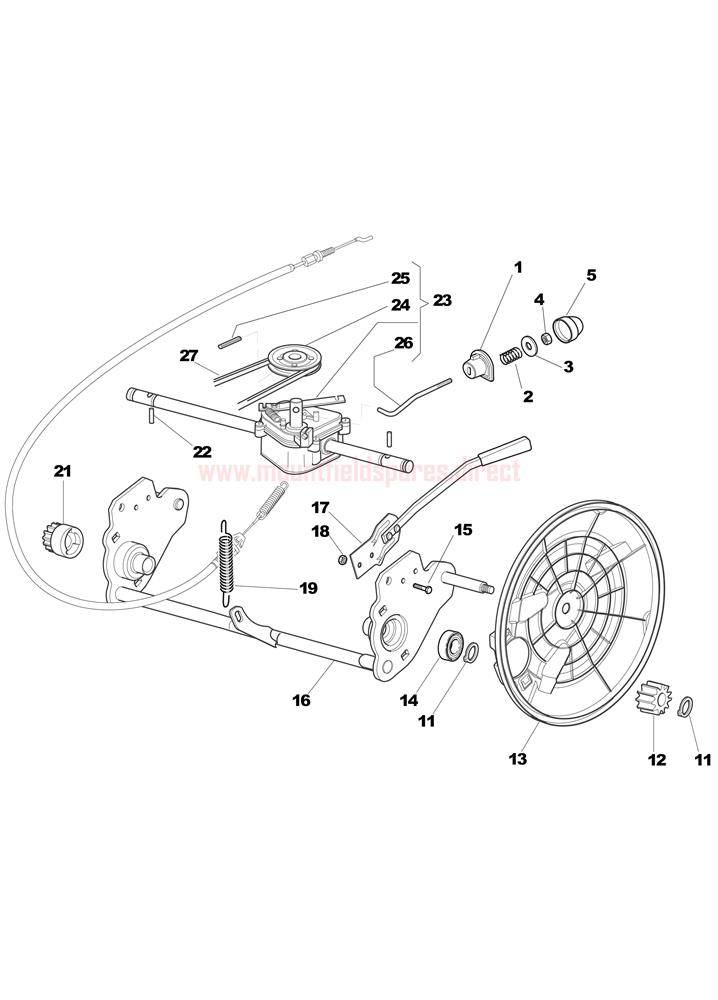

Rear Drive assembly details for Mountfield 4820PD BW (20110215) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122041957/1SPRING GUIDE BUSH£1.96 Add to
002122450063/0SPRING£1.96 Add to
003322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.82 Add to
004112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
005122110230/0HUB COVER£1.96 Add to
011112608600/0CIRCLIP D=12£1.98 Add to
012122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.11 Add to
013322600160/0WHEEL COVER D=300£4.96 Add to
014119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.65 Add to
015112789000/0SCREW TE M5 x 12£1.96 Add to
016381002853/2REAR WHEELS AXLE£83.33 Add to
017381003326/1HEIGHT ADJUSTMENT LEVER£32.71 Add to
018112154330/0LOW SELF-LOCKING NUT M5£1.96 Add to
019122450454/0SPRING 2009£7.66 Add to
021122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.33 Add to
022122753000/0PIN D=5.2 x 25.65£1.96 Add to
023181003092/0GEARBOX [BLACK]£109.28 Add to
024122601909/0PULLEY£5.72 Add to
025112645705/0ROLL PIN D=5 x 32£1.92 Add to
026122033283/0GEARBOX ADJUSTING ROD£4.81 Add to
027135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£10.49 Add to
