Deck And Height Adjusting

Deck And Height Adjusting assembly details for Mountfield 4820PD BW (20110215) 2012 model

Parts list

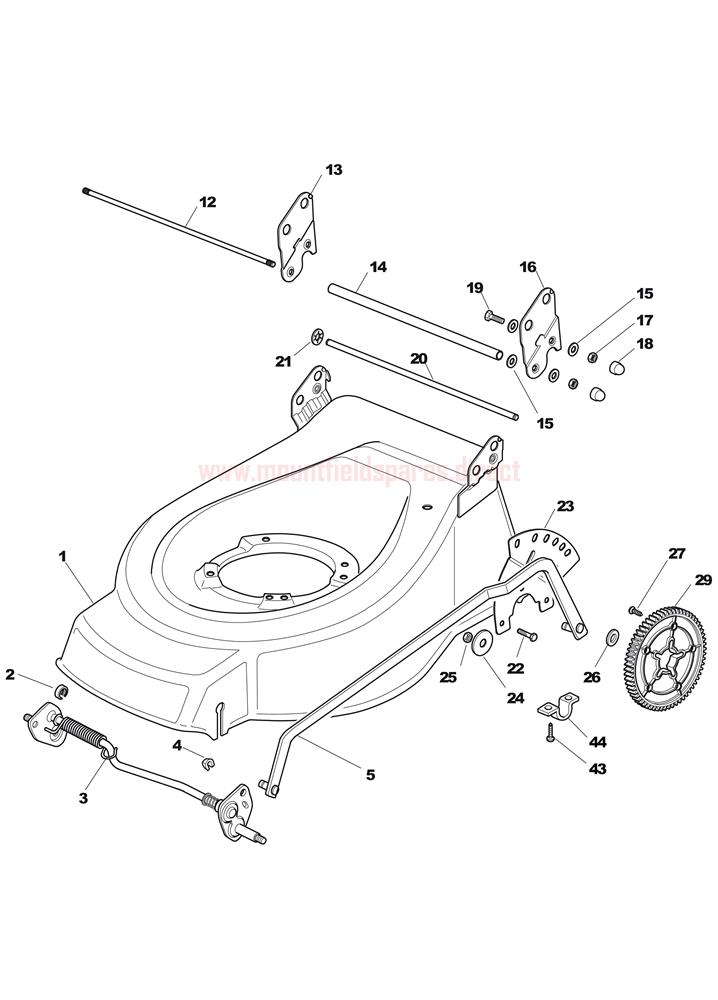

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381003690/0CHASSIS RED£176.02 Add to
002122171002/0AXLE SPACER£2.76 Add to
003381002861/0FRONT WHEELS AXLE ASS.Y£36.00 Add to
004112436051/0PIN PLATE D=8£1.65 Add to
005381001999/0Rod, Height Adjustment (OBSOLETE)N/A
01222517702/1LOWER HANDLE FULCRUM PIN TU ROLLER 2009£10.24 Add to
01322778427/0Bracket, R (OBSOLETE)N/A
01422869717/0Spacer (OBSOLETE)N/A
015122671653/0WASHER 8.3 x 20 x 3£2.76 Add to
01622778429/0Bracket, L (OBSOLETE)N/A
017112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
018118203854/0NUT CAP M8 [BLACK]£2.76 Add to
019112793301/0HEX-HEAD SCREW M8 x 25£2.76 Add to
020122517860/0FULCRUM PIN£9.49 Add to
021112604899/0STARLOCK WASHER RPCO 308 D=8£2.76 Add to
022112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.76 Add to
023322735579/1SECTOR HEIGHT ADJUSTMENT£9.96 Add to
024112523060/0WASHER M8 8.4 x 24 x 2£2.76 Add to
026122675100/0WASHER D=12.6 x 24 x 0.6£2.64 Add to
027112728691/0SELF-TAP SCREW WN1411 KA40 x 16£2.84 Add to
028322120110/0PLASTIC DRIVE GEAR D=300£18.84 Add to
043112731350/0SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15£2.76 Add to
044322545152/0AXLE BRACKET£2.76 Add to
