Handle, Lower Part

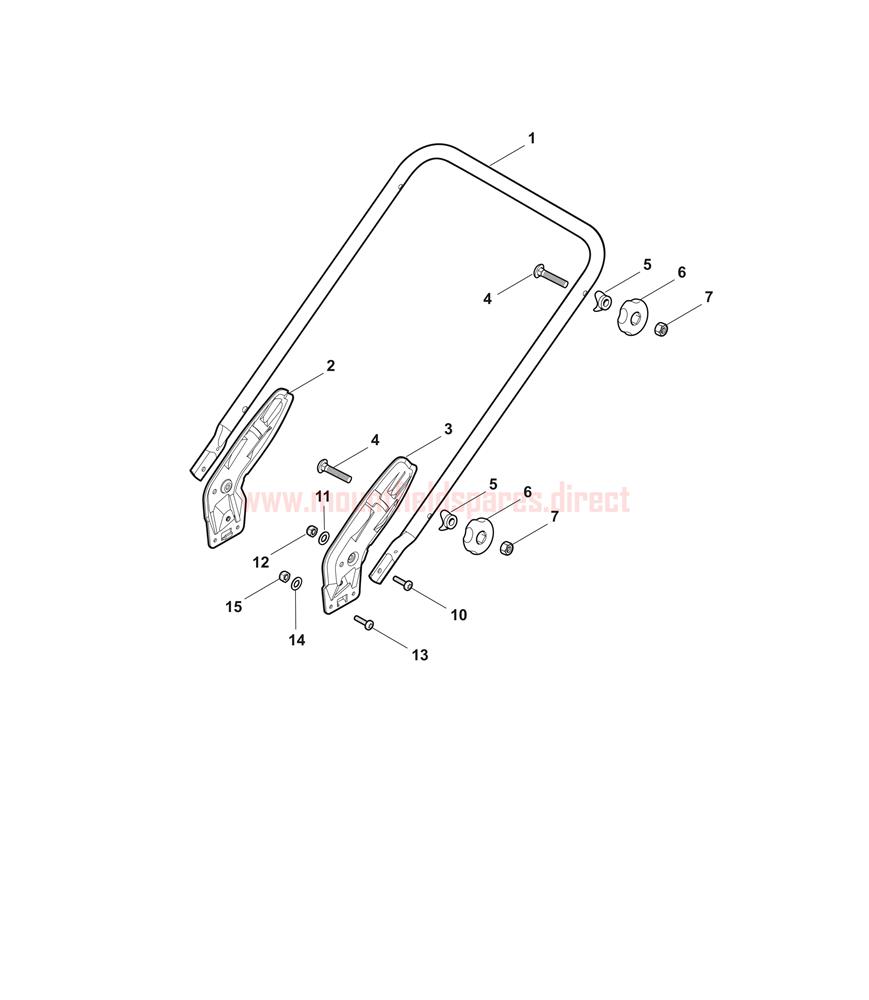

Handle, Lower Part assembly details for Mountfield 4820PD (20121602) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001381006889/0LOWER HANDLE [BLACK] NTD48£24.95 Add to
002381005125/0RIGHT HANDLE BRACKET£10.66 Add to
003381005127/0LEFT HANDLE BRACKET£12.14 Add to
004112819121/0CARRIAGE BOLT M8 X 55£1.96 Add to
005122680006/1PLASTIC WASHER£1.91 Add to
006122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
007112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
010112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
013112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
014112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
015112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
