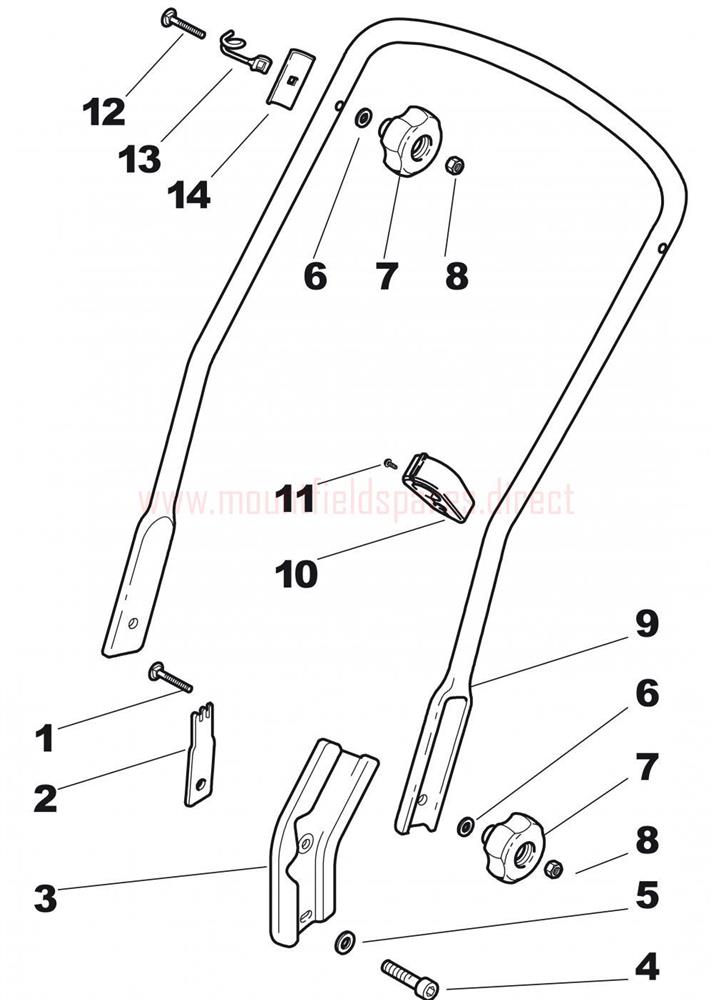

Handle, Lower Part

Handle, Lower Part assembly details for Mountfield SP555 (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112820655/0SCREW TTDQ 1/4" x 2 1/4"£1.70 Add to
002322551635/0ATTACHMENT PLATE£4.03 Add to
003322778405/0LOWER HANDLE SUPPORT CLAMP£23.76 Add to
004112760515/0HEXAGONAL SCREW TC M8 x 20£0.75 Add to
005112521350/0WASHER M8 8.4 x 16 x 1.6£1.96 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£1.96 Add to
006181002244/0FABRIC BOX EP/TU45 "STIGA"£82.92 Add to
007322399810/0HANDWHEEL w/o NUT [BLACK]£8.31 Add to
008112361005/0HEXAGON NUT 1/4" UNC£2.58 Add to
009381006613/0LOWER PRO HANDLE TURBO 50-55 BLACK£37.90 Add to
010322192001/0CABLE CLAMP£1.96 Add to
011112728691/0SELF-TAP SCREW WN1411 KA40 x 16£2.04 Add to
012112820655/0SCREW TTDQ 1/4" x 2 1/4"£1.70 Add to
013122430311/0PULL CORD GUIDE£6.54 Add to
014322545137/0HANDLE CLAMP PLATE£1.96 Add to
