Wheel and Hub Cap

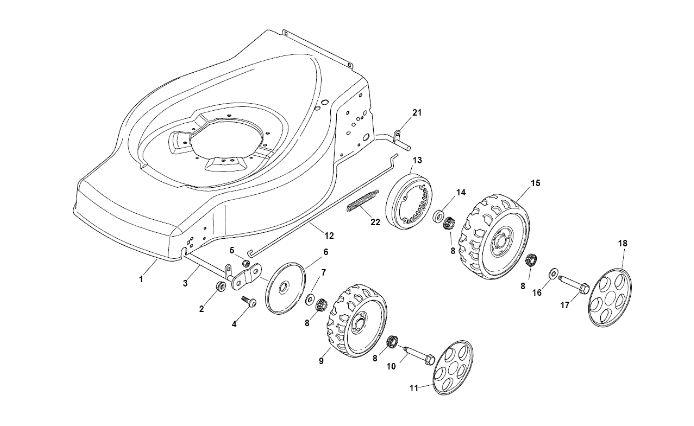

Wheel and Hub Cap assembly details for Mountfield SP536ES (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004746/0DECK GREY ES/ESL 53 RAL 7022£129.74 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
003381000153/0FRONT WHEELS AXLE£54.79 Add to
004112760600/0SCREW M8 x 16£1.19 Add to
005122131750/0NUT M8£2.06 Add to
006322600095/0INNER WHEEL COVER D=165£2.06 Add to
007122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
008122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
009322686091/1WHEEL D=165mm£7.10 Add to
010122524341/0WHEEL BOLT£2.87 Add to
011322110491/0HUB CAP D=170 [GREY]£2.47 Add to
012122033319/0HEIGHT ADJUST TIE ROD£21.26 Add to
013322120109/0PLASTIC DRIVE GEAR D=190£7.10 Add to
014322170622/0WHEEL SPACER£1.79 Add to
015381007468/0DRIVE WHEEL D=190£15.69 Add to
016112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
017112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
018322110417/0HUB CAP D=210 [GREY]£3.72 Add to
021381000159/0REAR WHEELS AXLE£24.95 Add to
022122446186/0SPRING£4.78 Add to
