Wheel and Hub Cap

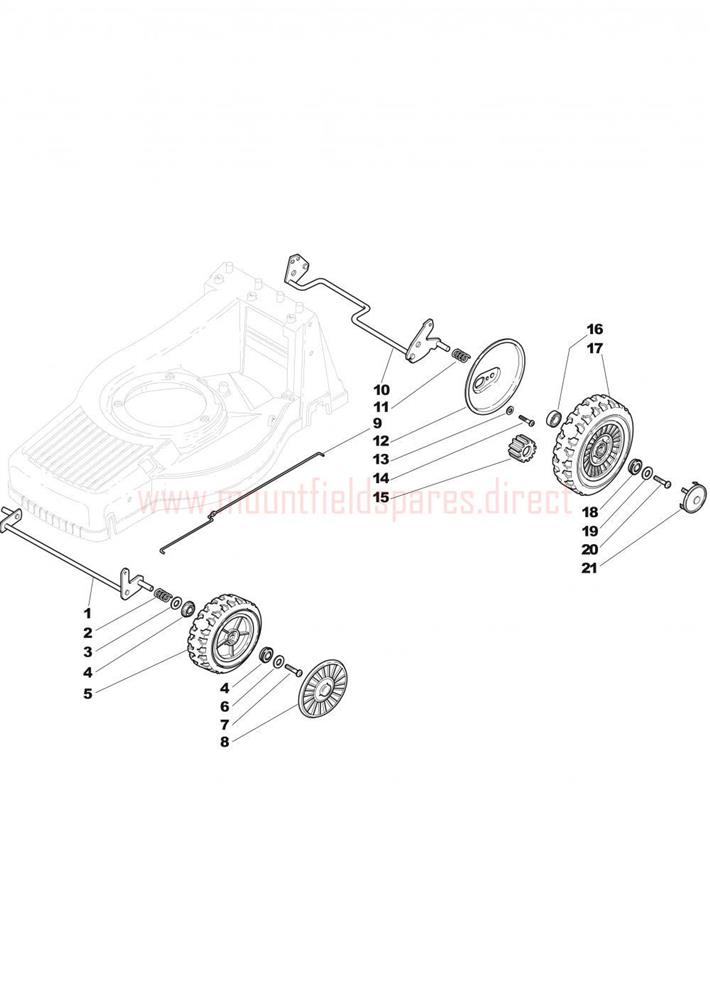

Wheel and Hub Cap assembly details for Mountfield SP505 (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002845/0FRONT WHEELS AXLE (OBSOLETE) (OBSOLETE)N/A
002122430210/0SPRING£1.96 Add to
003112521370/0WASHER M12 13 24 x 2.5£1.96 Add to
004122122206/0BEARING£2.21 Add to
005381007351/0WHEEL D=170£13.01 Add to
006112521460/0WASHER M6 6.5 x 22 x 1.5£0.75 Add to
007112735662/1SCREW TCB TORX M6 x 12£2.73 Add to
008322110347/0HUB CAP D=170 [GREY]£2.19 Add to
009122033322/0WHEEL CONTRO ROD TU50 [L=592,5]£10.57 Add to
010381002823/0REAR WHEELS AXLE (OBSOLETE)N/A
011122430215/0SPRING£3.51 Add to
012322600121/0WHEEL COVER PLATE D=190 (OBSOLETE) (OBSOLETE)N/A
013112521460/0WASHER M6 6.5 x 22 x 1.5£0.75 Add to
014112735662/1SCREW TCB TORX M6 x 12£2.73 Add to
015122570125/0RIGHT/LEFT PINION GEAR£14.29 Add to
017381007361/0WHEEL D=190£20.90 Add to
018122122201/0BEARING-PLASTIC CASE£2.61 Add to
019112521460/0WASHER M6 6.5 x 22 x 1.5£0.75 Add to
020112735662/1SCREW TCB TORX M6 x 12£2.73 Add to
021322110384/0HUB CAP 190/215 [GREY]£7.27 Add to
