Ass.Y Roller

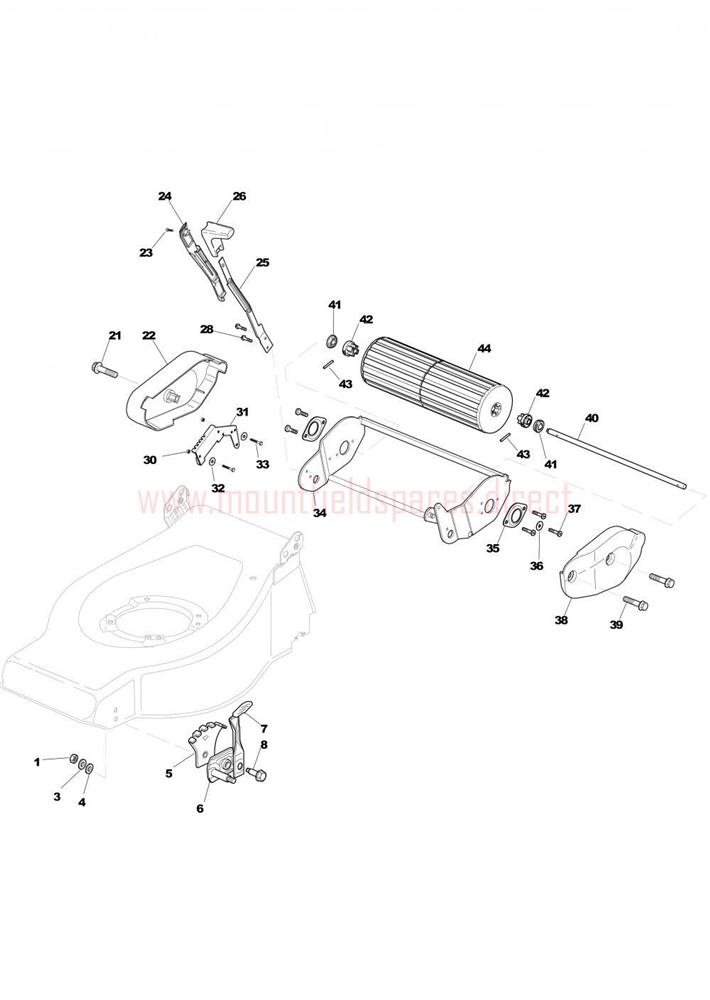

Ass.Y Roller assembly details for Mountfield SP465R (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
003112583500/0WASHER M8 UNI 1751 WZ£2.76 Add to
004112523070/0WASHER M8 8.5 x 32 x 2.5£2.76 Add to
005322735547/0HEIGHT ADJUST QUADRANT£3.26 Add to
006381005082/0STUB AXLE£6.84 Add to
007481003285/1HEIGHT ADJUST LEVER£9.36 Add to
008122519811/0WHEEL BOLT£2.76 Add to
021112735594/0HEX-HEAD SCREW M6 x 30£2.76 Add to
022322060210/0RIGHT ROLLER COVER [RED]£7.48 Add to
023112728680/0FLANGED SCREW D=5 x 25£2.76 Add to
024322109722/0ADJUST LEVER COVER£4.68 Add to
025322321505/0HEIGHT ADJUST LEVER [ROLLER]£16.56 Add to
026322399805/0HEIGHT ADJUST KNOB£13.32 Add to
028112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.76 Add to
030112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
031322735551/0HEIGHT ADJUST QUADRANT£9.36 Add to
032112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.76 Add to
033112789000/0SCREW TE M5 x 12£2.76 Add to
034381005109/1ROLLER SUPPORT TD/CA/ML/R£127.20 Add to
035322207325/0BEARING SUPPORT PLATE£3.00 Add to
036122671650/0WASHER£2.76 Add to
037112735662/1SCREW TCB TORX M6 x 12£3.48 Add to
038322060211/0LEFT ROLLER COVER [RED]£7.28 Add to
039112735592/0SELF-TAP SCREW M6 x 20£2.76 Add to
040122033361/0ROLLER AXLE SHAFT£15.59 Add to
041119216036/0BEARING 6201-2RS£9.72 Add to
042322855000/0ROLLER BUSH£3.60 Add to
043112620210/0ELASTIC ROLL PIN 4 x 30£2.76 Add to
044381007401/0DRIVE ROLLER ASSEMBLY£30.00 Add to
