Rear Drive

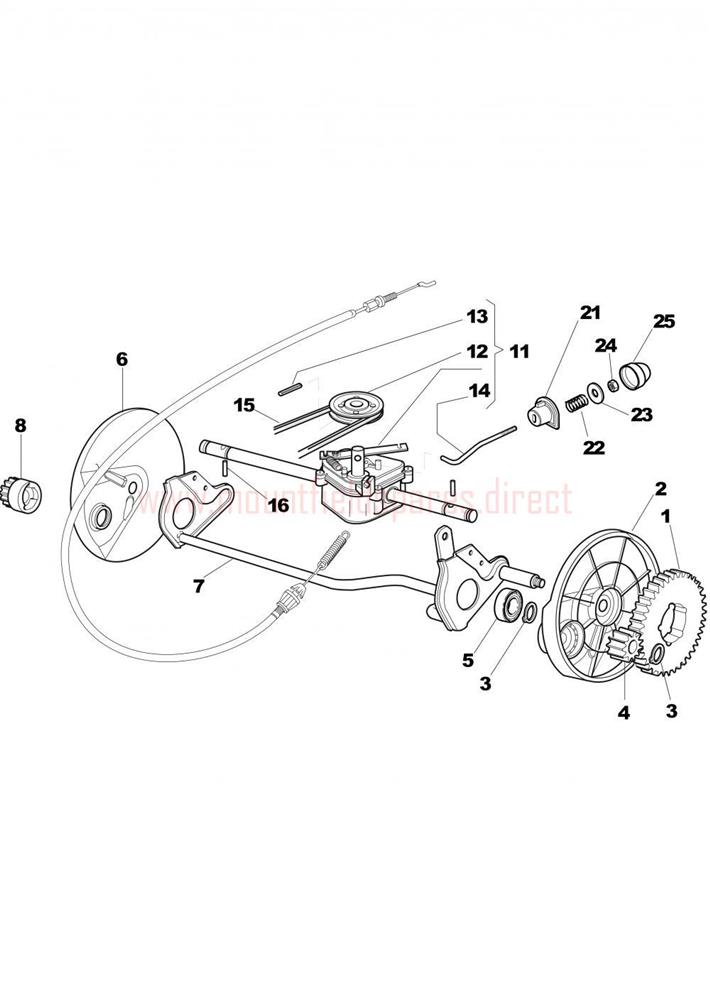

Rear Drive assembly details for Mountfield SP425 (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122120105/1DRIVE GEAR WHEEL£10.30 Add to
002122600093/0LEFT WHEEL COVER£3.51 Add to
003112608600/0CIRCLIP D=12£1.98 Add to
004122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.33 Add to
005119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.65 Add to
006122600092/0RIGHT WHEEL COVER£3.51 Add to
007381000147/0REAR WHEELS AXLE£25.50 Add to
008122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.11 Add to
011181003092/0GEARBOX [BLACK]£109.28 Add to
012122601909/0PULLEY£5.72 Add to
013112645705/0ROLL PIN D=5 x 32£1.92 Add to
014122033283/0GEARBOX ADJUSTING ROD£4.81 Add to
015135063710/0TRAPEZOIDAL BELT Z25£8.84 Add to
016122753000/0PIN D=5.2 x 25.65£1.96 Add to
021122041957/1SPRING GUIDE BUSH£1.96 Add to
022122450063/0SPRING£1.96 Add to
023322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.82 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
025122110230/0HUB COVER£1.96 Add to
