Wheel and Hub Cap

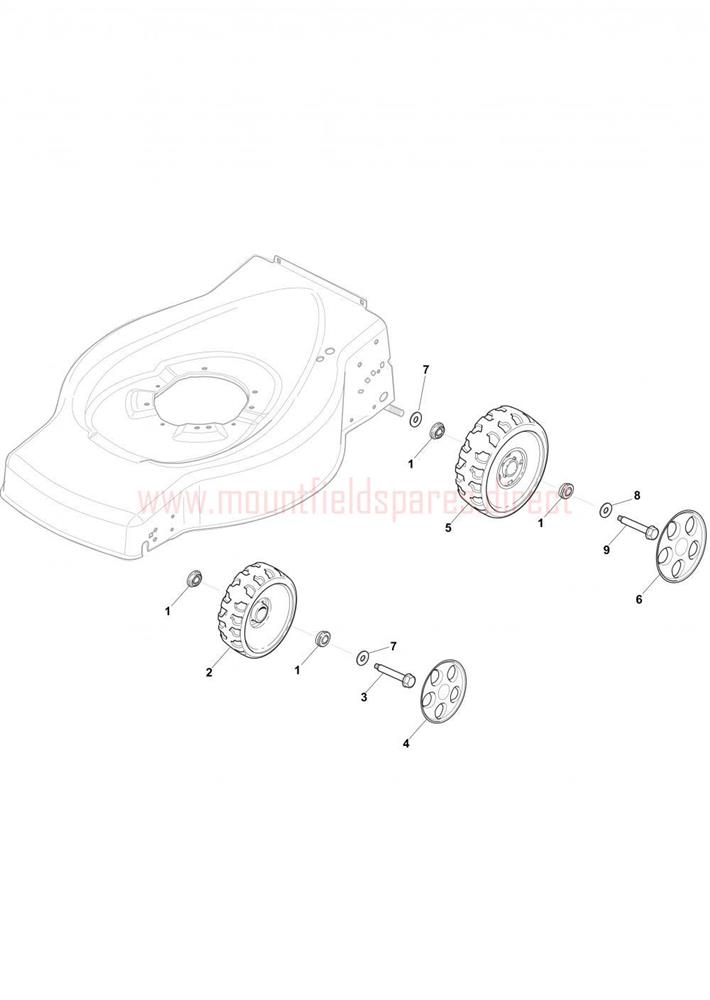

Wheel and Hub Cap assembly details for Mountfield SP184 (20110215) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	122122206/0	BEARING	£2.32	Add to
002	322686091/1	WHEEL D=165mm	£7.10	Add to
003	122524341/0	WHEEL BOLT	£2.87	Add to
004	322110491/0	HUB CAP D=170 [GREY]	£2.47	Add to
005	322686092/0	WHEEL D=190	£6.27	Add to
006	322110417/0	HUB CAP D=210 [GREY]	£3.72	Add to
007	122675100/0	WASHER D=12.6 x 24 x 0.6	£1.91	Add to
008	112523050/0	WASHER M6 6.6 x 24 x 2	£2.06	Add to
009	112735599/0	SELF-TAPPING SCREW M6 x 16	£2.06	Add to
