Engine (1)

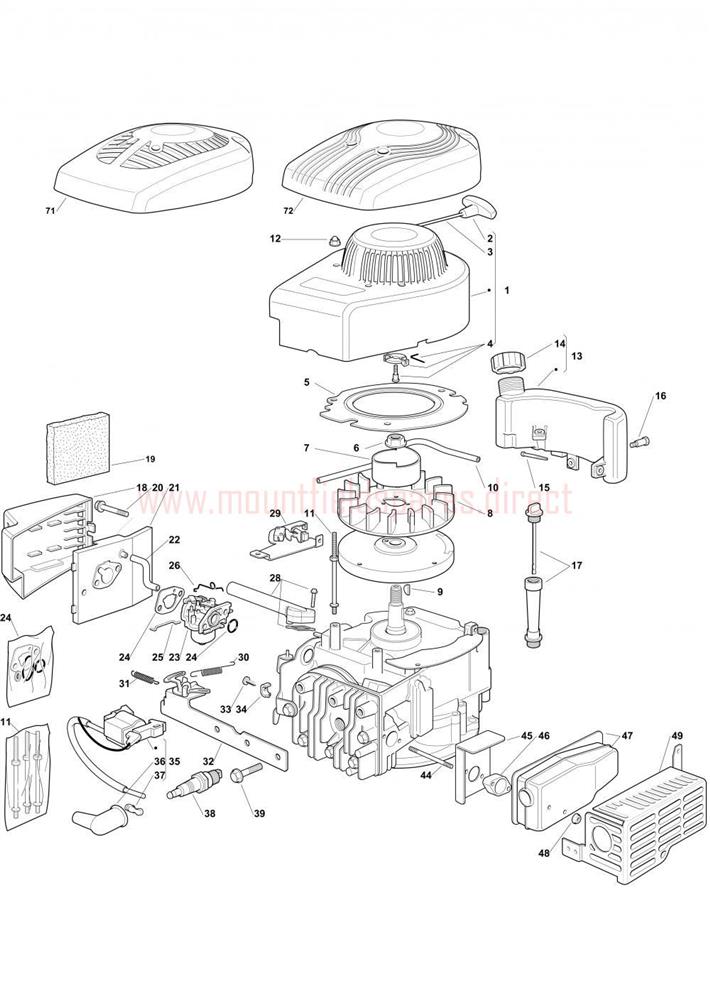

Engine (1) assembly details for Mountfield SP184 (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001118550139/1RECOIL ASSEMBLY 150cc£28.80 Add to
002118550768/0RECOIL HANDLE£11.76 Add to
003118550053/0STARTER CORD£3.26 Add to
004118550004/1STARTER PAWL SET£5.68 Add to
005118550138/0DEFLECTOR PLATE£4.92 Add to
007118550140/0STARTER CUP£5.16 Add to
008118550154/0FLYWHEEL FAN£6.31 Add to
009118550197/0FLYWHEEL KEY£3.00 Add to
010118550340/0FUEL PIPE£8.28 Add to
011118550142/0PIN BOLTS [3 PCS] - NLA£7.44 Add to
012118550007/0COVER FIXING NUT£3.00 Add to
013118550143/0FUEL TANK£29.38 Add to
014118550001/0FUEL TANK CAP£5.16 Add to
015118550141/0FUEL FILTER£2.76 Add to
017118550008/0OIL DIPSTICK ASSEMBLY£6.12 Add to
018118550133/0AIR FILTER COVER£5.82 Add to
019118550011/0FOAM AIR FILTER£4.08 Add to
020118550010/0SCREW (OBSOLETE)N/A
021118550125/1AIR FILTER BASE£7.99 Add to
023118550148/0CARBURETTOR£47.96 Add to
024118550019/0CARBURETTOR GASKET SET£3.98 Add to
025118550017/0CHOKE LINK£4.92 Add to
026118550149/0GOVERNOR LINK SV150£2.76 Add to
028118550129/0INTAKE MANIFOLD£8.64 Add to
029118550021/0ENGINE BRAKE£31.20 Add to
030118550151/0GOVERNOR SPRING SV 150£2.76 Add to
031118550150/0LINKING SPRING£2.76 Add to
032118550152/0CONTROL BRACKET SV150£10.56 Add to
033118550023/0SCREW£2.76 Add to
03418550022/0Casing Clamp (OBSOLETE)N/A
035118550126/0IGNITION COIL£46.80 Add to
036118550126/0IGNITION COIL£46.80 Add to
037118550126/0IGNITION COIL£46.80 Add to
0389400-0225-00SPARK PLUG (J19LM)£4.32 Add to
039118550128/0BOLT-CYLINDER HEAD£7.62 Add to
044118550027/0PIN BOLT-MUFFLER£5.64 Add to
045118550028/0MUFFLER GASKET£5.28 Add to
046118550030/0MUFFLER SPACER£5.40 Add to
047118550031/1CATALYTIC MUFFLER£70.27 Add to
048118550032/0MUFFLER FIXING NUT£2.76 Add to
049118550033/0MUFFLER GUARD£20.40 Add to
071322055436/0SV150 ENGINE COVER [BLACK]£13.24 Add to
072322055437/0ENGINE COVER RV150 [BLACK]£10.80 Add to
