Engine - GGP WBE0702 (1)

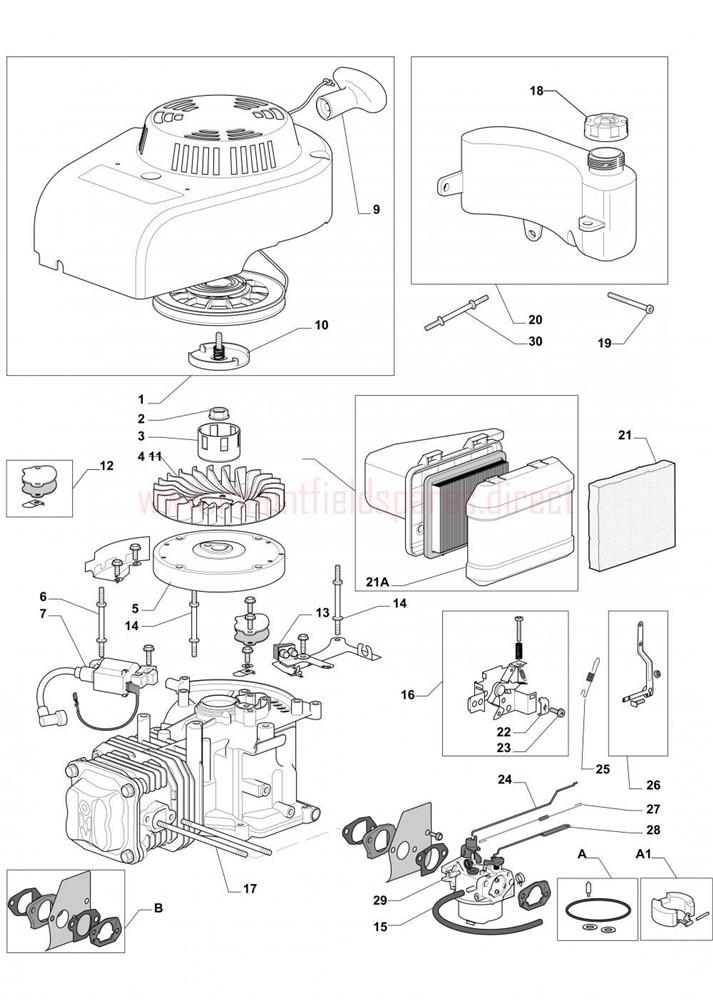

Engine - GGP WBE0702 (1) assembly details for Mountfield S461PD (20110216) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550276/1RECOIL ASSEMBLY 140/160cc [WBE]£53.42 Add to
002118550336/0NUT£6.42 Add to
003118550335/0STARTER CUP£22.61 Add to
004118550254/0FLYWHEEL FAN£21.26 Add to
005118550253/0FLYWHEEL£90.98 Add to
006118550301/0STUD BOLT£7.10 Add to
007118550255/1IGNITION COIL£54.79 Add to
009118550274/0RECOIL HANDLE£15.81 Add to
00A118550389/0CARBURETTOR REPAIR KIT£10.09 Add to
00B118550248/0CARBURETTOR GASKET SET£20.31 Add to
010118550275/1STARTER PAWL KIT£12.68 Add to
011118550737/0AIR FILTER ASSEMBLY£24.95 Add to
012118550378/0BREATHER CHAMBER KIT£23.45 Add to
013118550376/0FLYWHEEL BRAKE£41.16 Add to
014118550302/0STUD BOLT (OBSOLETE)N/A
015118550340/0FUEL PIPE£8.32 Add to
016118550259/0THROTTLE CONTROL ASSEMBLY£31.42 Add to
017118550298/0STUD BOLT£7.04 Add to
018118550339/1FUEL TANK CAP£15.81 Add to
019118550314/0FUEL FILTER£4.78 Add to
020118550316/0FUEL TANK£68.62 Add to
021118550452/0FOAM AIR FILTER£9.00 Add to
022118550337/0CASING CLAMP£12.37 Add to
023118550338/0SCREW£7.36 Add to
024118550397/0GOVERNOR LINK£2.87 Add to
025118550260/0SPRING£4.37 Add to
026118550266/0GOVERNOR ARM£14.82 Add to
027118550263/0SPRING£3.15 Add to
028118550264/0CHOKE CONTROL ROD£3.83 Add to
029118550390/0CARBURETTOR£77.95 Add to
030118550315/0STUD BOLT£8.04 Add to
0A1118550388/0CARBURETTOR FLOAT KIT£14.89 Add to
21A118550737/0AIR FILTER ASSEMBLY£24.95 Add to
