Deck And Height Adjusting

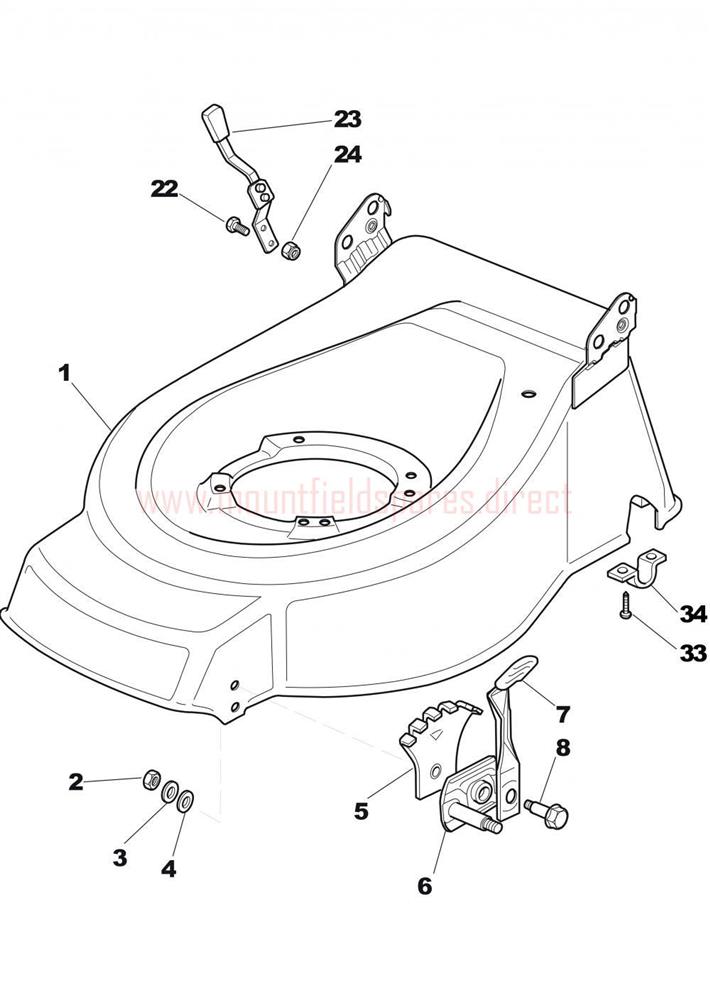

Deck And Height Adjusting assembly details for Mountfield S420PD (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00181001645/0Deck Red (OBSOLETE)N/A
002112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
003112583500/0WASHER M8 UNI 1751 WZ£2.76 Add to
004112523070/0WASHER M8 8.5 x 32 x 2.5£2.76 Add to
005322735547/0HEIGHT ADJUST QUADRANT£3.26 Add to
006381005082/0STUB AXLE£6.84 Add to
007481003285/1HEIGHT ADJUST LEVER£9.36 Add to
008122519811/0WHEEL BOLT£2.76 Add to
022112789000/0SCREW TE M5 x 12£2.76 Add to
023381003279/2HEIGHT ADJUST LEVER£24.96 Add to
024112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
033112731350/0SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15£2.76 Add to
034322545152/0AXLE BRACKET£2.76 Add to
