Wheel and Hub Cap

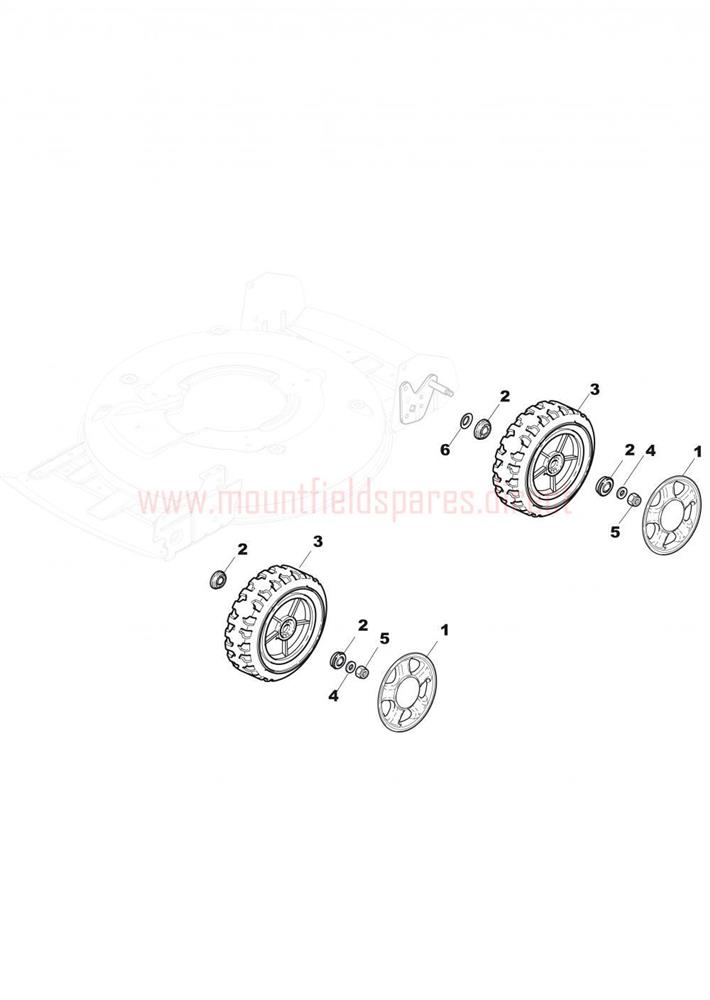

Wheel and Hub Cap assembly details for Mountfield MULTICLIP500PD (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322110382/0HUB CAP D=210 [GREY]£4.27 Add to
002122122206/0BEARING£2.32 Add to
003381007390/2WHEEL ASSEMBLY D=210 [ECO]£17.72 Add to
004112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006112530150/0SPRING WASHER M12£1.79 Add to
