Handle, Upper Part

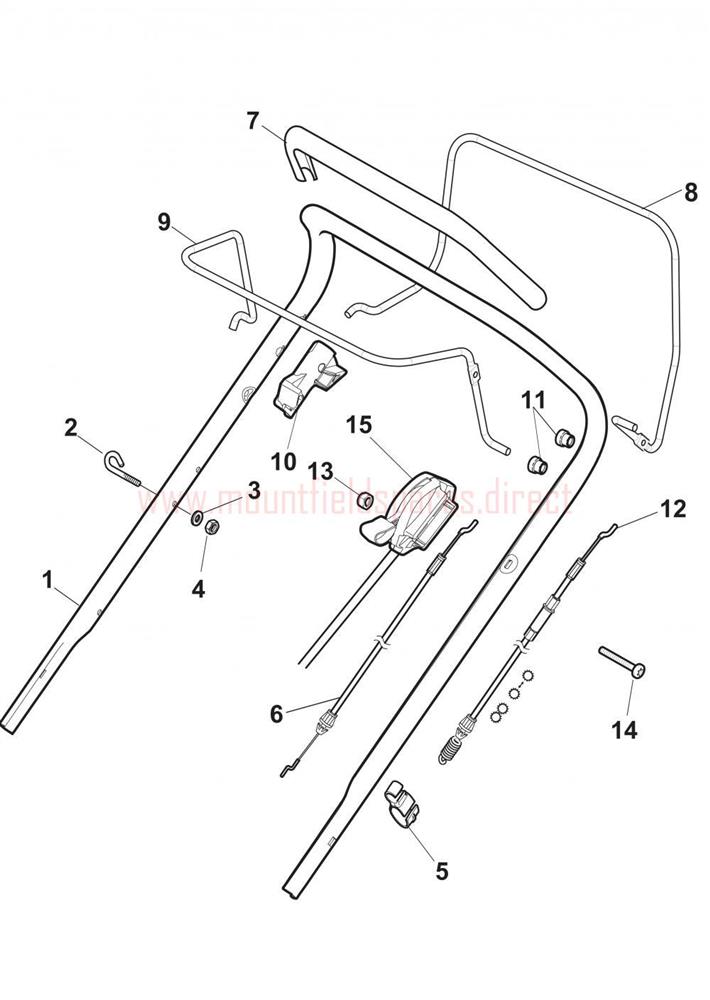

Handle, Upper Part assembly details for Mountfield MULTICLIP500PD (20110215) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006838/0	UPPER HANDLE [BLACK] NT	£32.83	Add to
002	122430313/0	PULL CORD GUIDE	£4.37	Add to
003	112521330/0	WASHER M6 6.4 x 12 x 1.6	£2.06	Add to
004	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
005	118390020/0	CABLE CLIP	£1.91	Add to
006	181030056/0	ENGINE BRAKE CABLE	£15.06	Add to
007	122291050/0	HANDLE GRIP [BLACK]	£14.58	Add to
008	181003363/1	ENGINE BRAKE LEVER	£15.41	Add to
009	181003364/0	CLUTCH DRIVE LEVER	£14.89	Add to
010	322545204/0	LEVER FULCRUM PLATE	£2.02	Add to
011	122041966/0	CONTROL LEVER BUSH	£2.06	Add to
012	381030083/0	CLUTCH DRIVE CABLE	£22.76	Add to
013	112727783/0	CROSS-HEAD SCREW M6 x 40	£2.06	Add to
014	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
015	181005511/0	THROTTLE CABLE L=1355	£24.95	Add to
