Handle, Upper Part

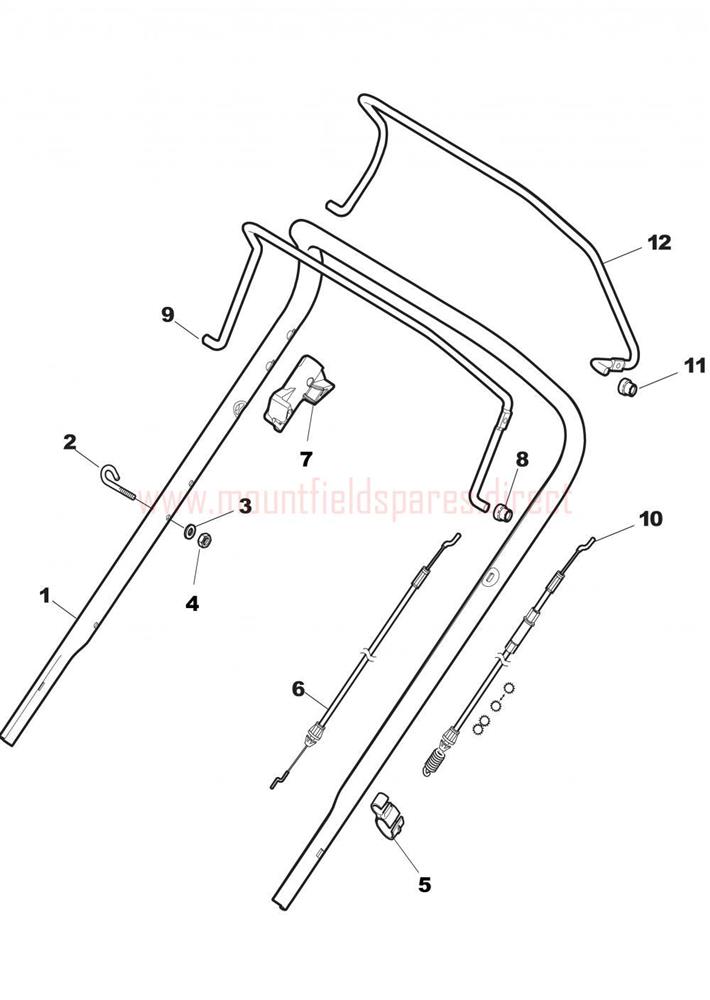

Handle, Upper Part assembly details for Mountfield HW511PD (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006838/0UPPER HANDLE [BLACK] NT£29.87 Add to
002122430313/0PULL CORD GUIDE£4.80 Add to
003112521330/0WASHER M6 6.4 x 12 x 1.6£2.76 Add to
004112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.76 Add to
005118390020/0CABLE CLIP£2.64 Add to
006181030053/0ENGINE BRAKE CABLE L=1150£11.99 Add to
007322545204/0LEVER FULCRUM PLATE£2.64 Add to
008122041966/0CONTROL LEVER BUSH£2.76 Add to
009181003300/1ENGINE BRAKE LEVER£14.64 Add to
010381030051/1CLUTCH DRIVE CABLE£13.99 Add to
011122041966/0CONTROL LEVER BUSH£2.76 Add to
012181003301/0DRIVE CONTROL LEVER£14.52 Add to
014322551685/0CABLE HOLDER BLOCK£6.98 Add to
015112728640/0SELF-TAPP.SCREW TCB 6.3X22 UNI 6954£3.00 Add to
