Wheel and Hub Cap

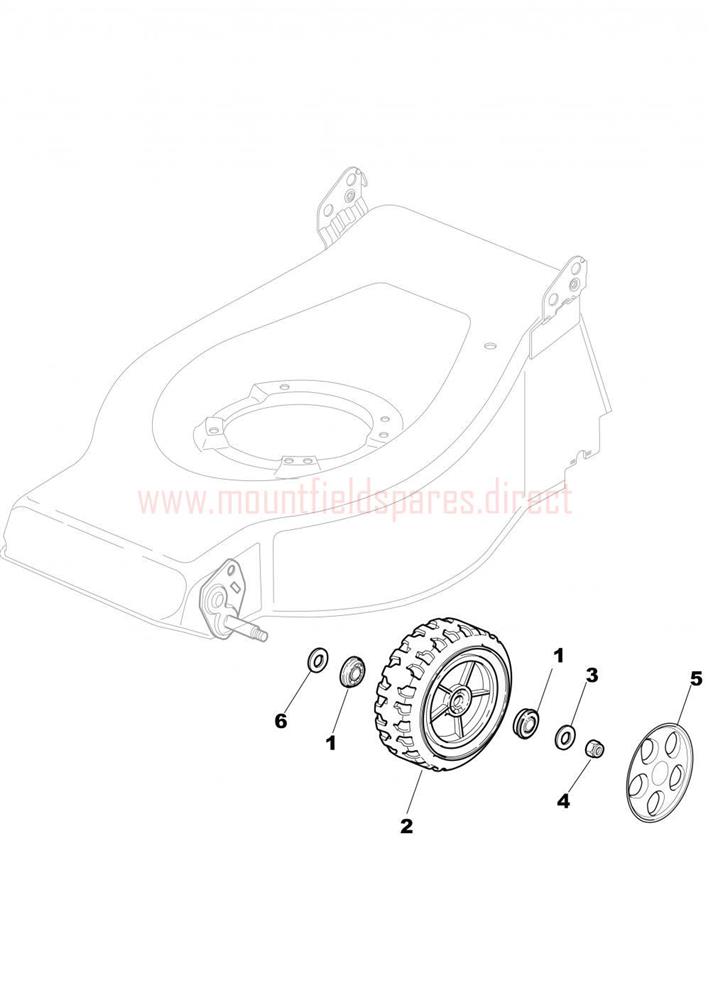

Wheel and Hub Cap assembly details for Mountfield HP465R (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122122206/0BEARING£2.21 Add to
002381007351/0WHEEL D=170£13.01 Add to
003112523060/0WASHER M8 8.4 X 24 X 2£1.96 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
005322110491/0HUB CAP D=170 [GREY]£2.35 Add to
006112530150/0SPRING WASHER M12£1.70 Add to
