Handle, Upper Part

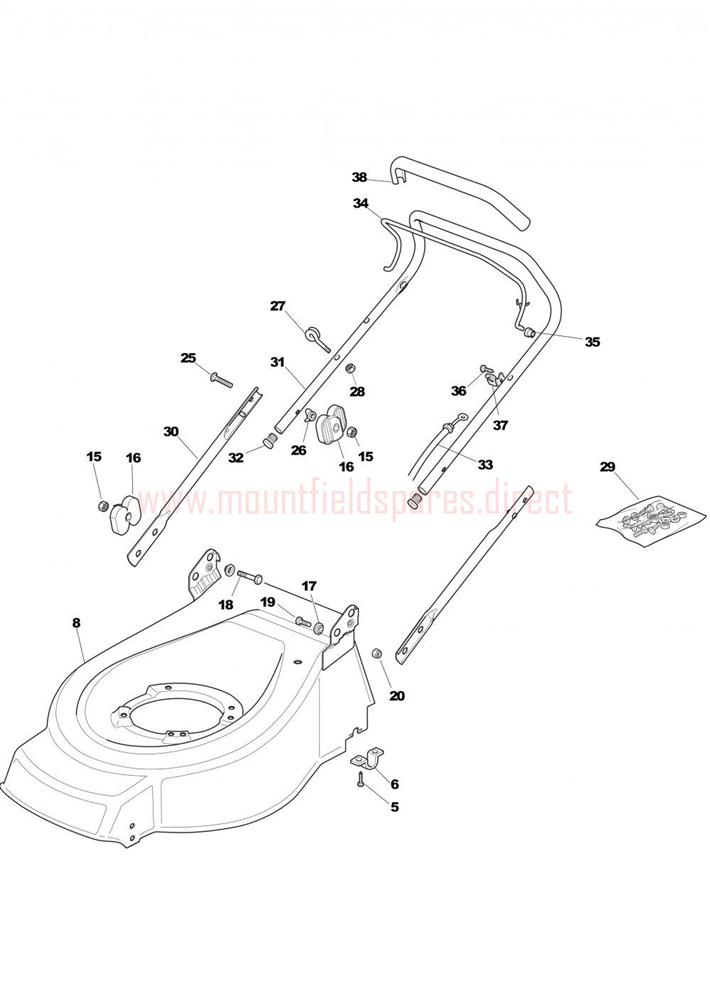

Handle, Upper Part assembly details for Mountfield HP465R (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
005112731350/0SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15£2.76 Add to
008381002565/0STEEL DECK 46cm ROLLER [RED] (OBSOLETE)N/A
015112293202/0HEXAGONAL NUT M8 UNI 5588£2.76 Add to
016322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.68 Add to
017322041955/0METAL HANDLE BUSH£2.76 Add to
018112793701/0HEX-HEAD SCREW M8 x 30£1.65 Add to
019112792610/0HEX-HEAD SCREW M8 x 16£1.65 Add to
020112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
025112819125/0CARRIAGE BOLT M8 x 55£1.65 Add to
026122680006/1PLASTIC WASHER£2.64 Add to
027122430309/0PULL CORD GUIDE£3.48 Add to
028112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
029381008642/0SCREW ASSEMBLY KIT-46R£26.40 Add to
030381006973/0LOWER HANDLE [BLACK]£32.40 Add to
031381006977/1UPPER HANDLE BLACK CASTEL TS£30.56 Add to
032118566116/0HANDLE CAP BLACK D=21£3.36 Add to
033181000641/0ENGINE BRAKE CABLE£14.28 Add to
034181003291/3ENGINE BRAKE LEVER£13.86 Add to
035122041966/0CONTROL LEVER BUSH£2.76 Add to
038112728518/0SELF-TAPPING SCREW 5.5 x 13£2.76 Add to
039322806612/0BRAKE CABLE SUPPORT£4.02 Add to
040122291050/0HANDLE GRIP [BLACK]£13.80 Add to
