Blade

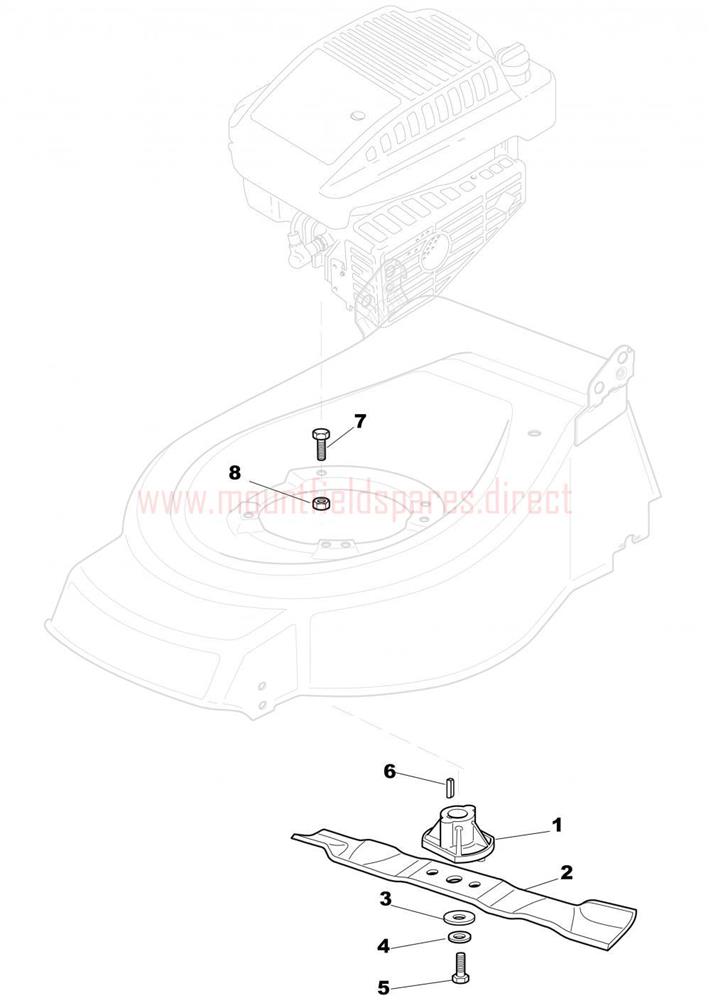

Blade assembly details for Mountfield HP465R (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122463020/1BLADE BOSS D=25mm£9.63 Add to
003122160400/0SPRING WASHER 50 x 2 x 10.2£2.88 Add to
004112523080/0WASHER M10 11 x 30 x 2.5£2.76 Add to
005112735698/0HEX-HEAD SCREW 3/8" x 2"£2.21 Add to
006112139150/0WOODRUFF KEY D=25mm£1.94 Add to
007112691800/0HEX-HEAD SCREW M8 x 60£2.76 Add to
007112793701/0HEX-HEAD SCREW M8 x 30£1.65 Add to
008112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
008112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
