Handle, Lower Part

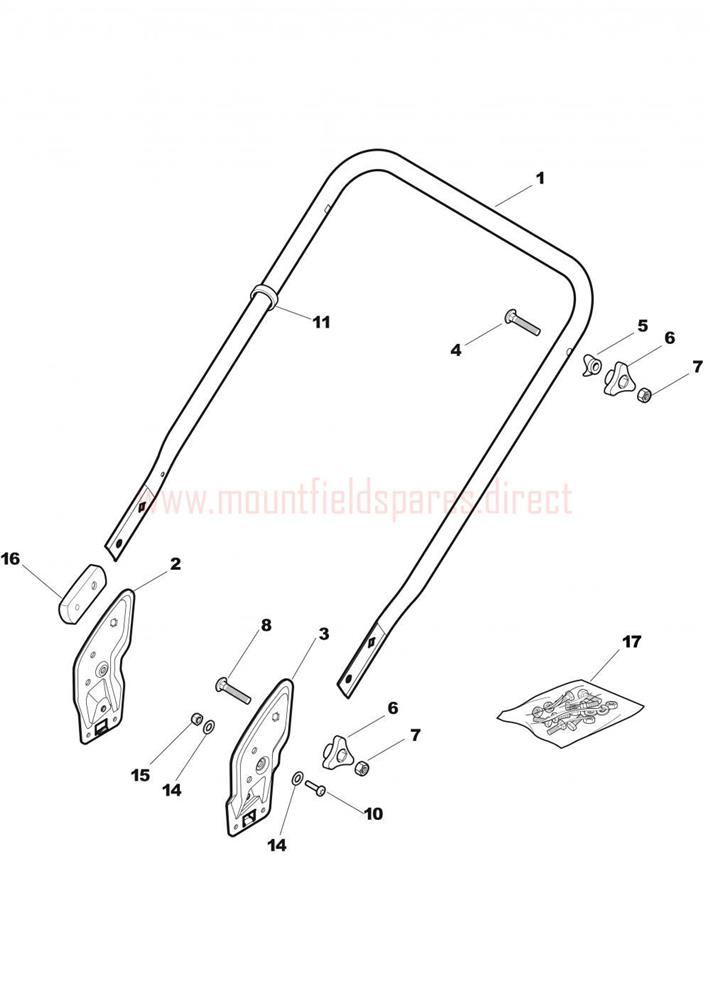

Handle, Lower Part assembly details for Mountfield EL4800PD BW (20110215) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006735/0	LOWER HANDLE [BLACK] CR ELECTRIC	£16.79	Add to
002	381005133/0	RIGHT HANDLE BRACKET	£7.10	Add to
003	381005135/0	LEFT HANDLE BRACKET	£7.10	Add to
004	112819121/0	CARRIAGE BOLT M8 X 55	£1.96	Add to
005	122680006/1	PLASTIC WASHER	£1.91	Add to
006	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
007	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
008	112819110/0	CARRIAGE BOLT M8 x 50	£2.02	Add to
010	112793701/0	HEX-HEAD SCREW M8 x 30	£1.76	Add to
011	122192000/1	CABLE CLAMP	£1.91	Add to
014	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
015	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
016	322551582/0	HANDLE INSULATOR	£2.06	Add to
017	381008689/0	SCREW ASSEMBLY KIT	£9.00	Add to
