Handle, Lower Part

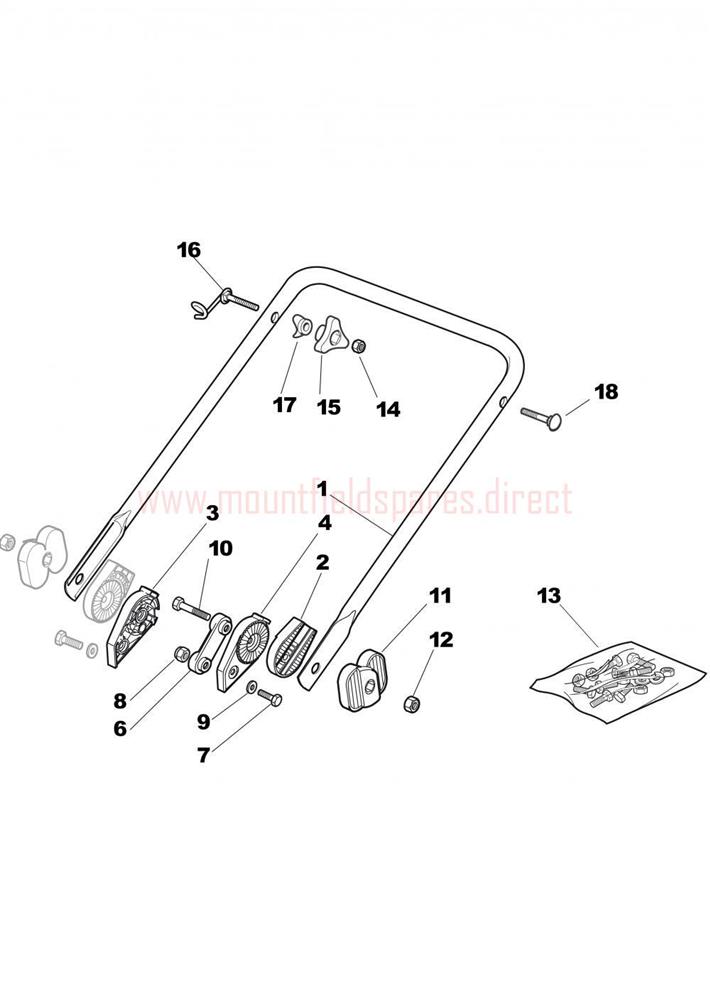

Handle, Lower Part assembly details for Mountfield 4820PD (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006531/0LOWER HANDLE£21.34 Add to
002322785081/1HANDLE SUPPORT£5.34 Add to
003122785082/0RIGHT INTERNAL SUPPORT£4.20 Add to
004122785083/1LEFT INTERNAL SUPPORT£4.09 Add to
006122551575/0INSIDE PLATE£2.76 Add to
007112793301/0HEX-HEAD SCREW M8 x 25£2.76 Add to
008112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
009112521350/0WASHER M8 8.4 x 16 x 1.6£2.76 Add to
010112691810/0SCREW TE M8 x 60£2.64 Add to
011122399803/0KNOB£2.76 Add to
012112293202/0HEXAGONAL NUT M8 UNI 5588£2.76 Add to
013181008623/1KIT COMPONENTS FOR LAWN MOWER PAN£8.04 Add to
014112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
015122399900/03 SPOKE HANDWHEEL [BLACK]£2.76 Add to
016181003801/1BOLT/PULL CORD GUIDE£3.98 Add to
017122680006/1PLASTIC WASHER£2.64 Add to
018112819201/0CARRIAGE BOLT M8 x 60£3.72 Add to
