Deck And Height Adjusting

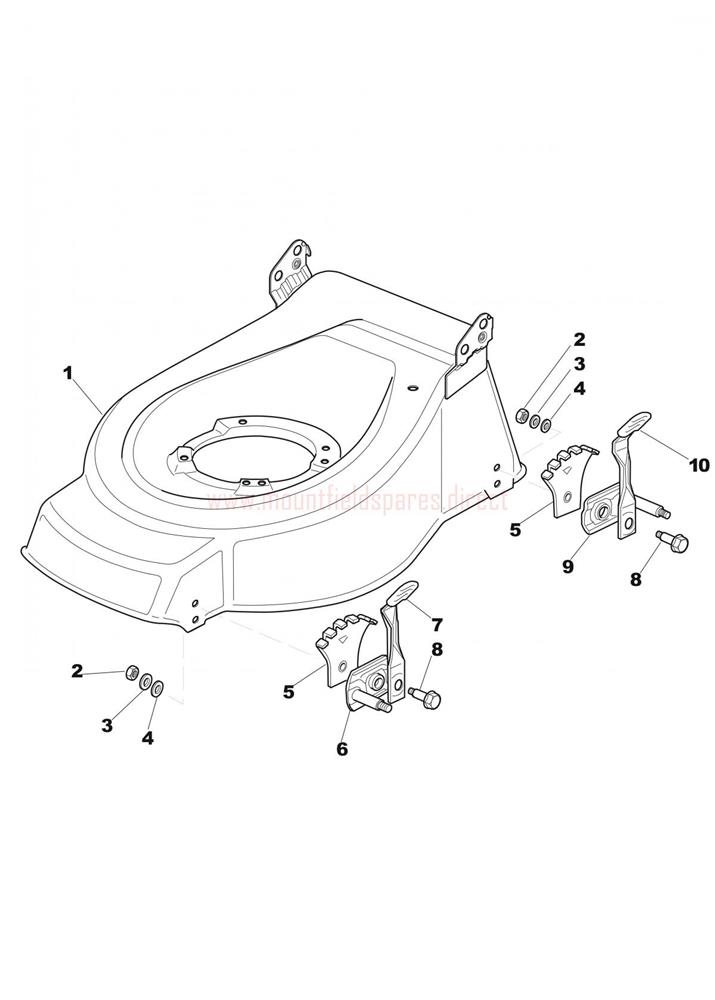

Deck And Height Adjusting assembly details for Mountfield 4820HP (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381001339/0STEEL DECK TD48 [RED]£186.34 Add to
002112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.96 Add to
003112583500/0WASHER M8 UNI 1751 WZ£1.96 Add to
004112523070/0WASHER M8 8.5 x 32 x 2.5£1.96 Add to
005322735547/0HEIGHT ADJUST QUADRANT£2.49 Add to
006381005082/0STUB AXLE£6.37 Add to
007481003285/1HEIGHT ADJUST LEVER£9.09 Add to
008122519811/0WHEEL BOLT£1.96 Add to
009381005084/0STUB AXLE£5.64 Add to
010481003286/0HEIGHT ADJUST LEVER£4.94 Add to
