Handle, Lower Part

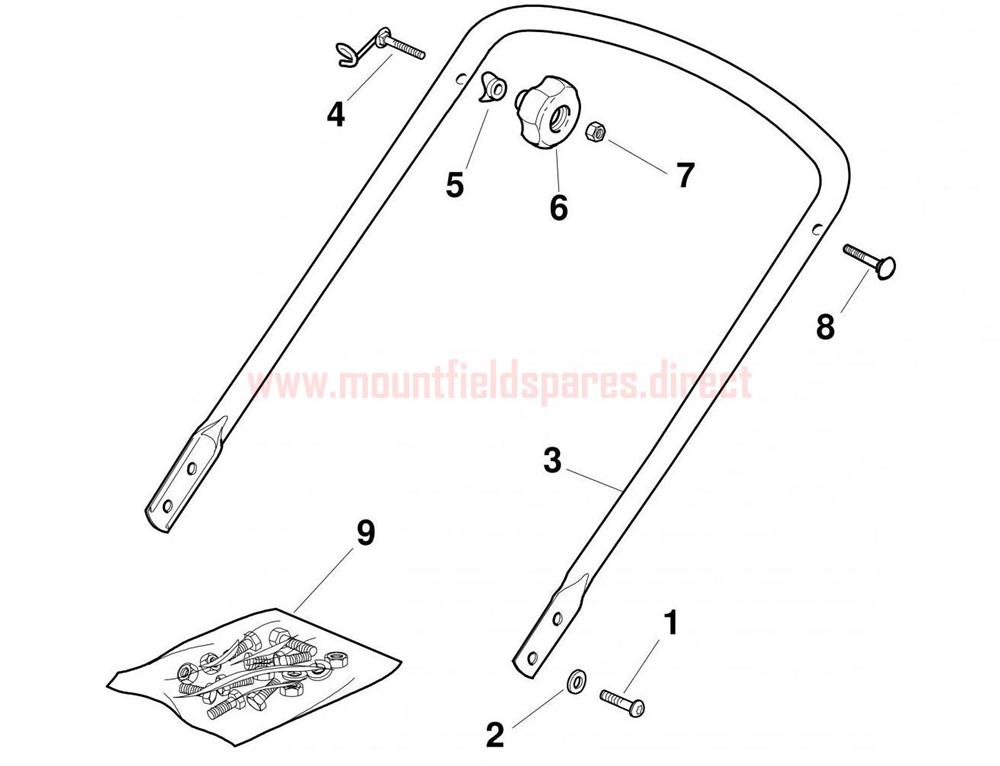

Handle, Lower Part assembly details for Mountfield MIPL2010_20100401_HP454 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
002	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
003	381006686/0	LOWER HANDLE	£48.48	Add to
004	181003801/1	BOLT/PULL CORD GUIDE	£3.44	Add to
005	122680006/1	PLASTIC WASHER	£1.91	Add to
006	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
007	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
008	112819201/0	CARRIAGE BOLT M8 x 60	£3.15	Add to
009	381008648/1	SCREW ASSEMBLY KIT	£13.91	Add to
