Handle, Lower Part

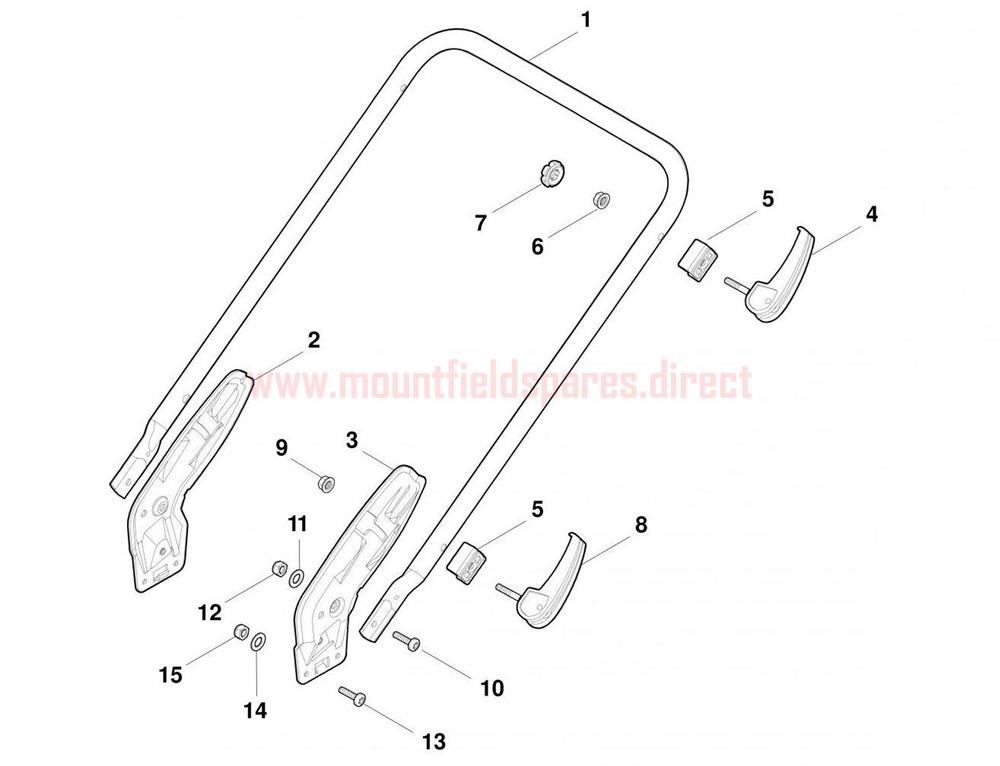

Handle, Lower Part assembly details for Mountfield MIPL2010_20100331_S461PD 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006889/0LOWER HANDLE [BLACK] NTD48£23.76 Add to
002381005125/0RIGHT HANDLE BRACKET£10.15 Add to
003381005127/0LEFT HANDLE BRACKET£11.56 Add to
004381103359/1LOCKING HANDLE LEVER L=62 [BLACK]£4.82 Add to
005322680016/0HANDLE FIXING WASHER£1.96 Add to
006122131750/0NUT M8£1.96 Add to
007381004310/0HANDLE FIXING ASSEMBLY£2.21 Add to
008381003254/0LOWER LOCKING HANDLE [BLACK]£6.54 Add to
0091137-0155-01SPACER£4.30 Add to
010112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£1.96 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£1.96 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
013112727803/0SCREW TCB TORX M6 x 14£1.96 Add to
014112523040/0WASHER M6 6.6 x 18 x 1.6£1.96 Add to
015112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
