Chassis-Wheels And Height Adjusting

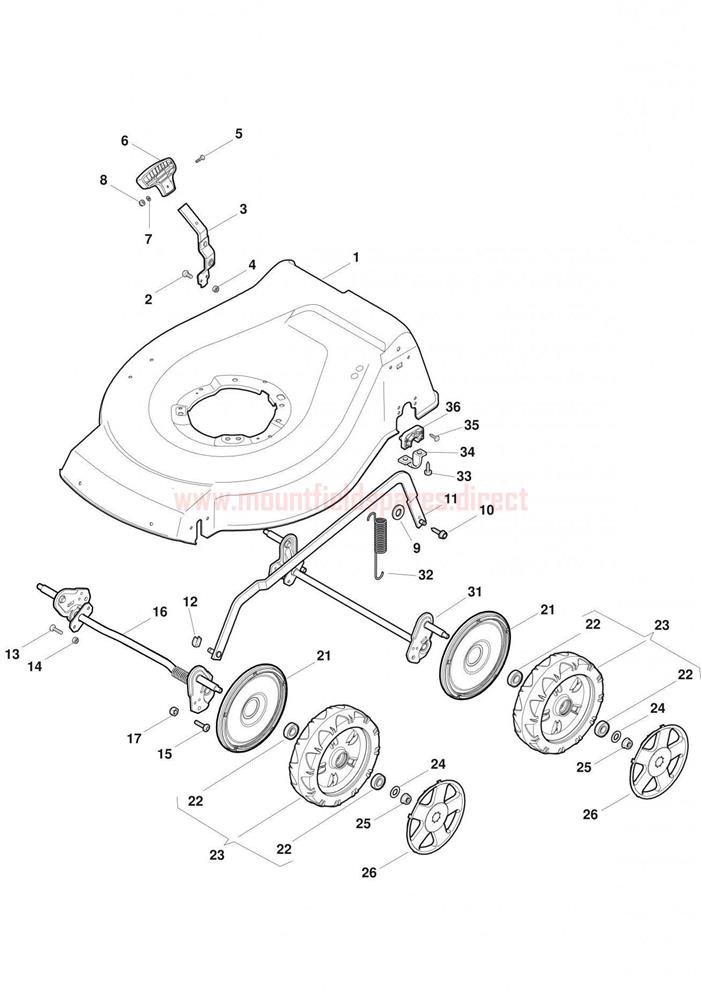

Chassis-Wheels And Height Adjusting assembly details for Mountfield MIPL2010_20100331_S461HP 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381003908/0STEEL DECK NTD48 [RED]£163.20 Add to
001381003914/0Deck Yellow 484 (OBSOLETE)N/A
001381003916/0Deck Black 484 (OBSOLETE)N/A
001381003977/0CHASSIS NTD48 FRONTAL ASTRAL GREY (OBSOLETE) (OBSOLETE)N/A
002112789000/0SCREW TE M5 x 12£2.76 Add to
003381003339/0HEIGHT ADJUST LEVER£12.24 Add to
004112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
005112788512/0SCREW M4 x 12£2.76 Add to
006322394503/0HEIGHT ADJUST KNOB£2.88 Add to
008112150000/0SELF-LOCKING NUT M4£2.52 Add to
009112369500/0SPRING WASHER D=8£2.52 Add to
010122943013/0SCREW 1/4 WITH COLLAR£5.52 Add to
011381002029/0HEIGHT ADJUST TIE BAR£35.55 Add to
012112436051/0PIN PLATE D=8£1.65 Add to
013112727803/0SCREW TCB TORX M6 x 14£2.76 Add to
014112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.76 Add to
015112727801/0SCREW TCB TORX M6 x 20£2.76 Add to
016381002883/0Axle, Front Wheels 484 (OBSOLETE)N/A
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.76 Add to
021322600145/0INNER WHEEL COVER D=200£2.76 Add to
022119216035/0BEARING 6001 2RS (12 x 28 x 8)£4.32 Add to
023381007416/3WHEEL ASSEMBLY D=200£16.68 Add to
024112521350/0WASHER M8 8.4 x 16 x 1.6£2.76 Add to
025112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
026322110382/0HUB CAP D=210 [GREY]£4.71 Add to
031381002889/0REAR WHEELS AXLE ASS.Y NTD48/53 TS D=200£39.04 Add to
032122450460/0SPRING£5.40 Add to
033112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.76 Add to
034322545152/0AXLE BRACKET£2.76 Add to
035112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.76 Add to
036322785304/1REAR AXLE SUPPORT£3.36 Add to
