Handle, Lower Part

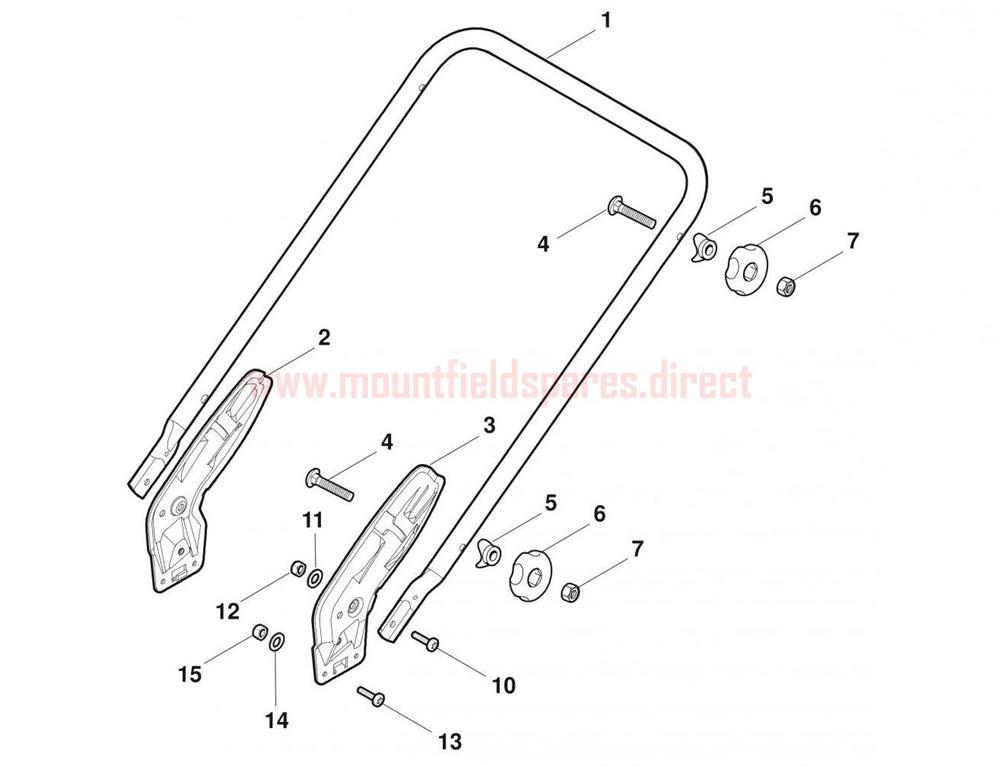

Handle, Lower Part assembly details for Mountfield MIPL2010_20100331_HWS510PD 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001381006891/0LOWER HANDLE BLACK NTD 53 (FAST RELEASE)£27.54 Add to
002381005125/0RIGHT HANDLE BRACKET£10.33 Add to
003381005127/0LEFT HANDLE BRACKET£11.64 Add to
004112819121/0CARRIAGE BOLT M8 x 55£1.67 Add to
005122680006/1PLASTIC WASHER£2.64 Add to
006322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.68 Add to
007112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
010112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.76 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.76 Add to
012112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
013112727803/0SCREW TCB TORX M6 x 14£2.76 Add to
014112523040/0WASHER M6 6.6 x 18 x 1.6£2.76 Add to
015112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.76 Add to
