Mask

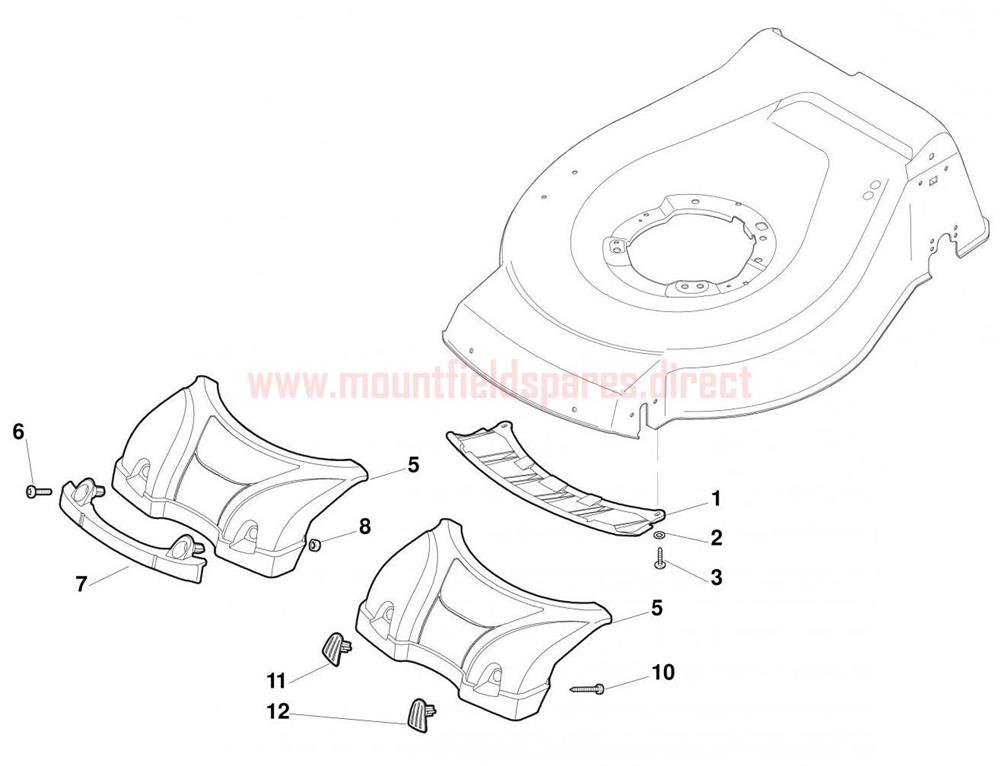

Mask assembly details for Mountfield MIPL2010_20100331_HW514PD 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322500103/0UNDER DECK COVER 51cm£5.64 Add to
002112523000/1WASHER M4 4.3 x 12 x 1£1.65 Add to
003112728124/0SELF-TAP SCREW TCB TORX 4.2 X 16£1.65 Add to
005322226145/0PLASTIC FRONT CG X NTD 53 RED 3002£9.36 Add to
005322226154/0PLASTIC FRONT GUARD [BLACK] NT53£9.36 Add to
006112727799/0SCREW TCB TORX M6 x 35£2.88 Add to
007322393638/0FRONTAL HANDLE BLACK NTD£4.20 Add to
007322393639/0FRONT HANDLE [GREY]£7.20 Add to
008112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.76 Add to
010112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.76 Add to
011322820082/0RIGHT FRONT PLUG NTD 48/53 BLACK£2.76 Add to
012322820083/0LEFT FRONT PLUG NTD 48/53 BLACK£2.76 Add to
