Chassis

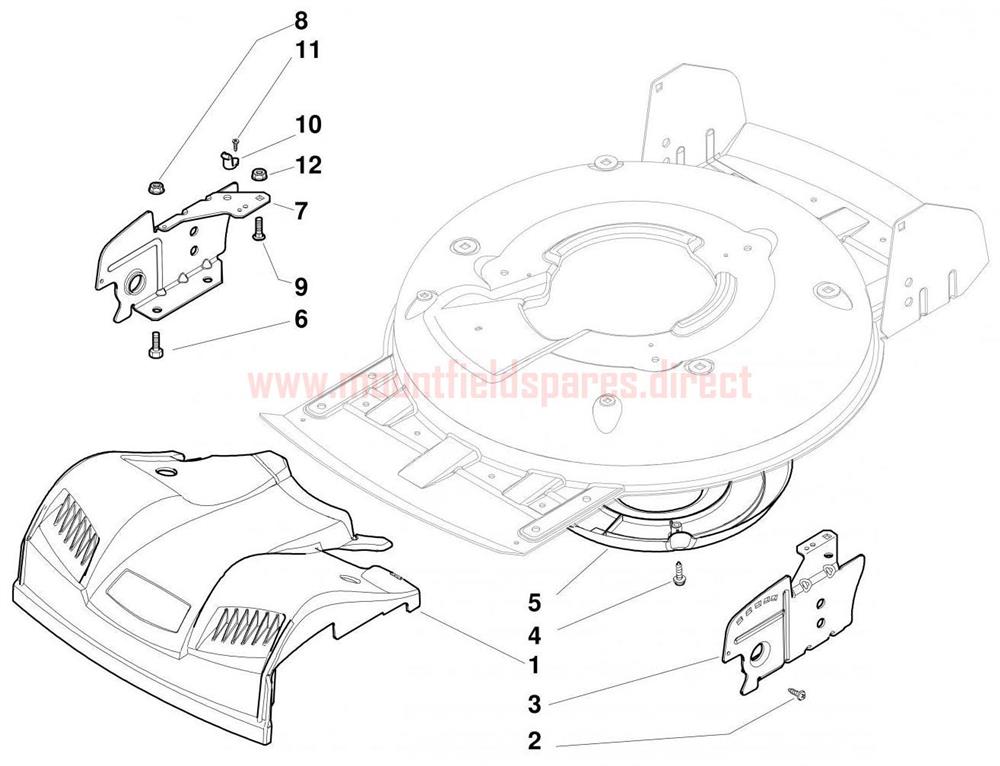

Chassis assembly details for Mountfield MIPL2010_20100329_MULTICLIP INOX 504 PD 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322226098/1PLASTIC FRONT COVER [GREY]£11.64 Add to
002112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.76 Add to
003322778421/0LEFT FRONT BRACKET£13.68 Add to
004112728530/0SELF-TAP SCREW 4.8 x 25£1.65 Add to
005322060220/0BELT PROTECTION GUARD£7.20 Add to
006112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.76 Add to
007322778419/0RIGHT FRONT BRACKET£13.68 Add to
008112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
009112815200/0SCREW TTDQ M6x16 UNI 5732 WO/NUT 8.8 WZ£2.76 Add to
010322020400/0PLASTIC LUG SCREW£2.76 Add to
011112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.76 Add to
012112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.76 Add to
