Chassis

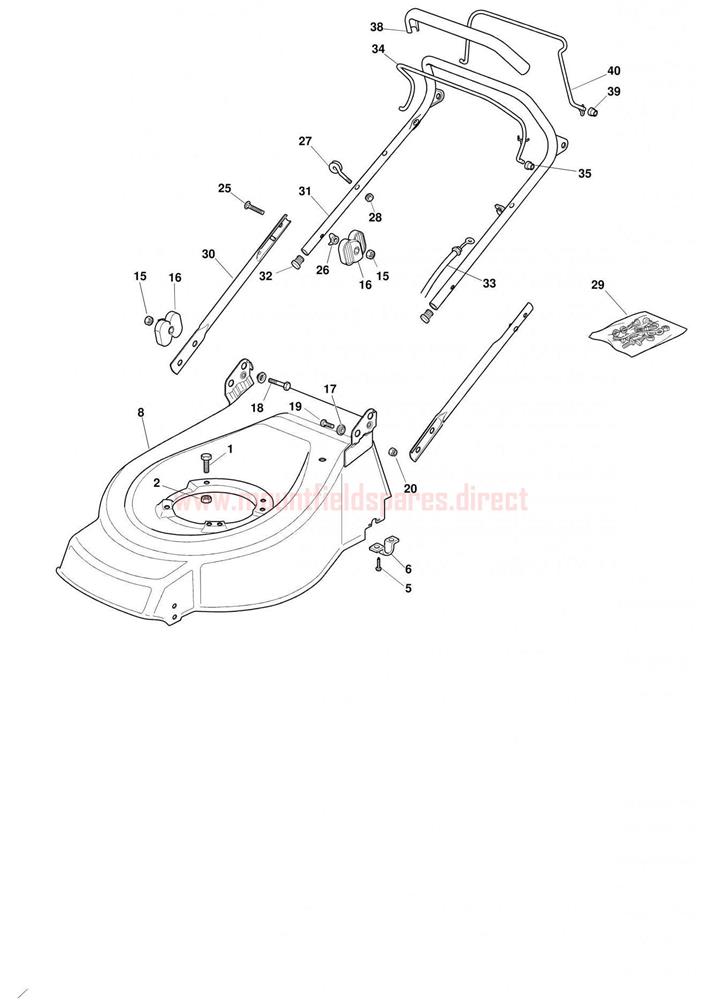

Chassis assembly details for Mountfield MIPL2010_20100324_S461R_PD 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112691800/0HEX-HEAD SCREW M8 x 60£1.96 Add to
001112793701/0HEX-HEAD SCREW M8 x 30£1.68 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
005112731350/0SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15£1.96 Add to
008381002565/0STEEL DECK 46cm ROLLER [RED] (OBSOLETE)N/A
015112293202/0HEXAGONAL NUT M8 UNI 5588£1.96 Add to
016122399803/0KNOB£1.96 Add to
017322041955/0METAL HANDLE BUSH£1.96 Add to
018112793701/0HEX-HEAD SCREW M8 x 30£1.68 Add to
019112792610/0HEX-HEAD SCREW M8 x 16£1.92 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
025112819125/0CARRIAGE BOLT M8 x 55£0.75 Add to
026122680006/1PLASTIC WASHER£1.82 Add to
027122430309/0PULL CORD GUIDE£2.73 Add to
028112154330/0LOW SELF-LOCKING NUT M5£1.96 Add to
029381008640/0PETROL ROLLER CA SCREW OUTFIT£26.20 Add to
030381006973/0LOWER HANDLE [BLACK] (OBSOLETE)N/A
031381006809/0UPPER HANDLE [GREY]£51.59 Add to
032118566116/0HANDLE CAP BLACK D=21£2.61 Add to
033181000611/0ENGINE BRAKE CABLE£13.64 Add to
033181000625/0ENGINE BRAKE CABLE L=1256£12.34 Add to
033181000641/0ENGINE BRAKE CABLE£14.41 Add to
033181000757/0ENGINE BRAKE CABLE L=1097£13.11 Add to
033181000757/0ENGINE BRAKE CABLE L=1097£13.11 Add to
033181000757/0ENGINE BRAKE CABLE L=1097£13.11 Add to
034181003291/3ENGINE BRAKE LEVER£13.96 Add to
035122041966/0CONTROL LEVER BUSH£1.96 Add to
038122291050/0HANDLE GRIP [BLACK]£13.89 Add to
039322041965/1DRIVE LEVER BUSH£1.96 Add to
040181003288/1DRIVE CONTROL LEVER£11.43 Add to
