Ass.Y Roller

Ass.Y Roller assembly details for Mountfield MIPL2010_20100324_S461R_PD 2010 model

Parts list

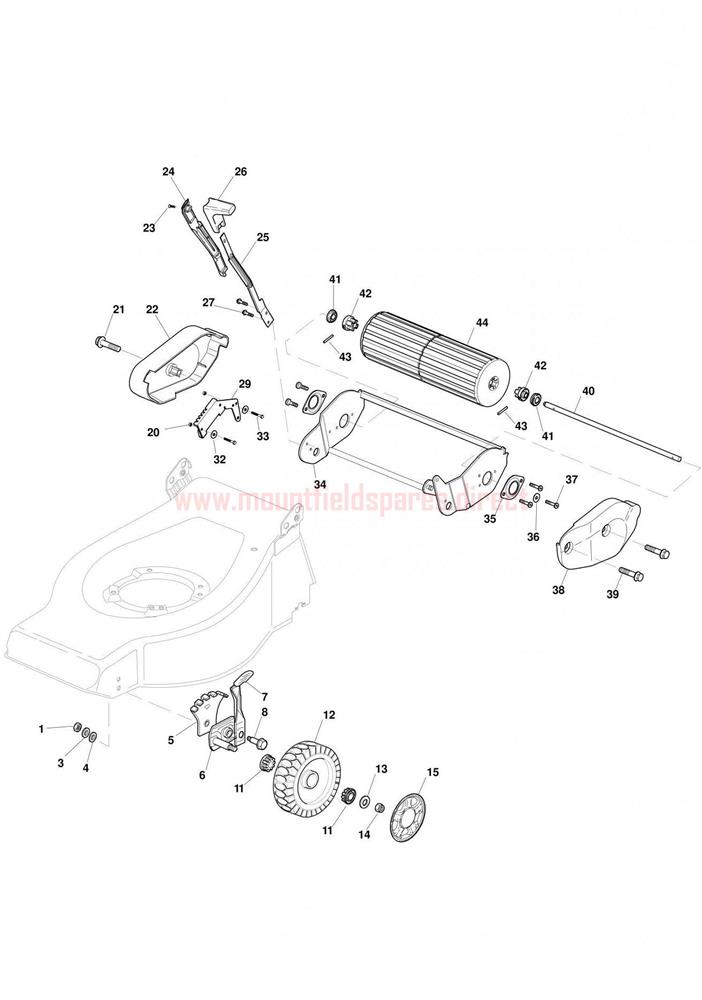

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
003112583500/0WASHER M8 UNI 1751 WZ£2.76 Add to
004112523070/0WASHER M8 8.5 x 32 x 2.5£2.76 Add to
005322735547/0HEIGHT ADJUST QUADRANT£3.26 Add to
006381005082/0STUB AXLE£6.84 Add to
007481003285/1HEIGHT ADJUST LEVER£9.36 Add to
008122519811/0WHEEL BOLT£2.76 Add to
009381005084/0STUB AXLE£6.17 Add to
010481003286/0HEIGHT ADJUST LEVER£5.52 Add to
011122034508/0PLASTIC BUSH [WHITE]£2.76 Add to
012381007336/0FRONT WHEEL D=170£12.12 Add to
013112523060/0WASHER M8 8.4 x 24 x 2£2.76 Add to
014112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
015322110381/0HUB CAP D=170 [GREY]£4.20 Add to
021112735594/0HEX-HEAD SCREW M6 x 30£2.76 Add to
022322060210/0RIGHT ROLLER COVER [RED]£7.48 Add to
023112728680/0FLANGED SCREW D=5 x 25£2.76 Add to
024322109722/0ADJUST LEVER COVER£4.68 Add to
025322321505/0HEIGHT ADJUST LEVER [ROLLER]£16.56 Add to
026322399805/0HEIGHT ADJUST KNOB£13.32 Add to
027322034512/0ROLLER AXLE BUSH£2.76 Add to
028112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.76 Add to
029322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£2.64 Add to
030112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
031322735551/0HEIGHT ADJUST QUADRANT£9.36 Add to
032112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.76 Add to
033112789000/0SCREW TE M5 x 12£2.76 Add to
034381005109/1ROLLER SUPPORT TD/CA/ML/R£127.20 Add to
035322207325/0BEARING SUPPORT PLATE£3.00 Add to
036122671650/0WASHER£2.76 Add to
037112735662/1SCREW TCB TORX M6 x 12£3.48 Add to
038322060211/0LEFT ROLLER COVER [RED]£7.28 Add to
039112735592/0SELF-TAP SCREW M6 x 20£2.76 Add to
040122033361/0ROLLER AXLE SHAFT£15.59 Add to
041119216036/0BEARING 6201-2RS£9.72 Add to
042322855000/0ROLLER BUSH£3.60 Add to
043112620210/0ELASTIC ROLL PIN 4 x 30£2.76 Add to
044381007401/0DRIVE ROLLER ASSEMBLY£30.00 Add to
