Controls

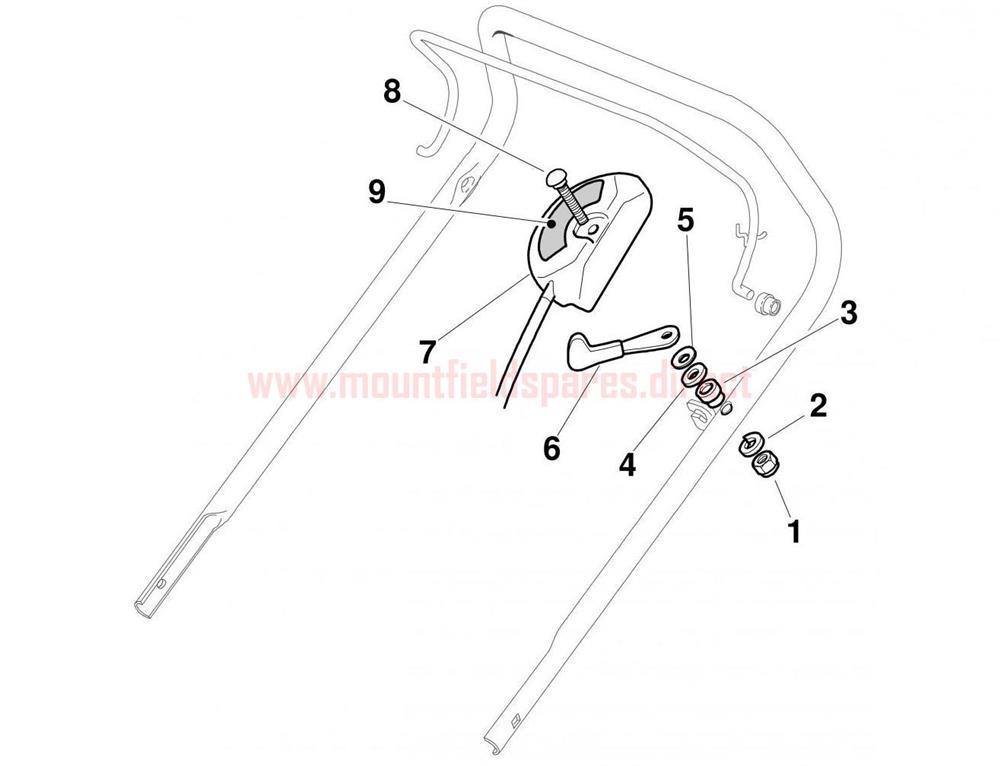

Controls assembly details for Mountfield MIPL2010_20100324_S421PD 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112291000/0HEXAGON NUT M5£1.96 Add to
002112581500/0WASHER M5£1.96 Add to
003122171005/0THROTTLE SPACER£1.96 Add to
004112521360/0WASHER M10 10.5 x 20 x 2£1.96 Add to
005112508100/0SPRING WASHER 10.2 x 20 x 0.8£1.96 Add to
006381007220/0THROTTLE LEVER£24.93 Add to
006381007279/1THROTTLE LEVER£1.96 Add to
007481007080/0THROTTLE CABLE£23.76 Add to
008112815000/0CARRIAGE BOLT M5 x 45£1.96 Add to
009124487998/0R CLIP D=2£1.96 Add to
009124487998/0R CLIP D=2£1.96 Add to
009114364264/0ECO THROTTLE LABEL EX GGP 140-160-196 C20£8.29 Add to
009114356702/0THROTTLE DECAL£1.96 Add to
00914356703/0Label (B&S) (OBSOLETE)N/A
