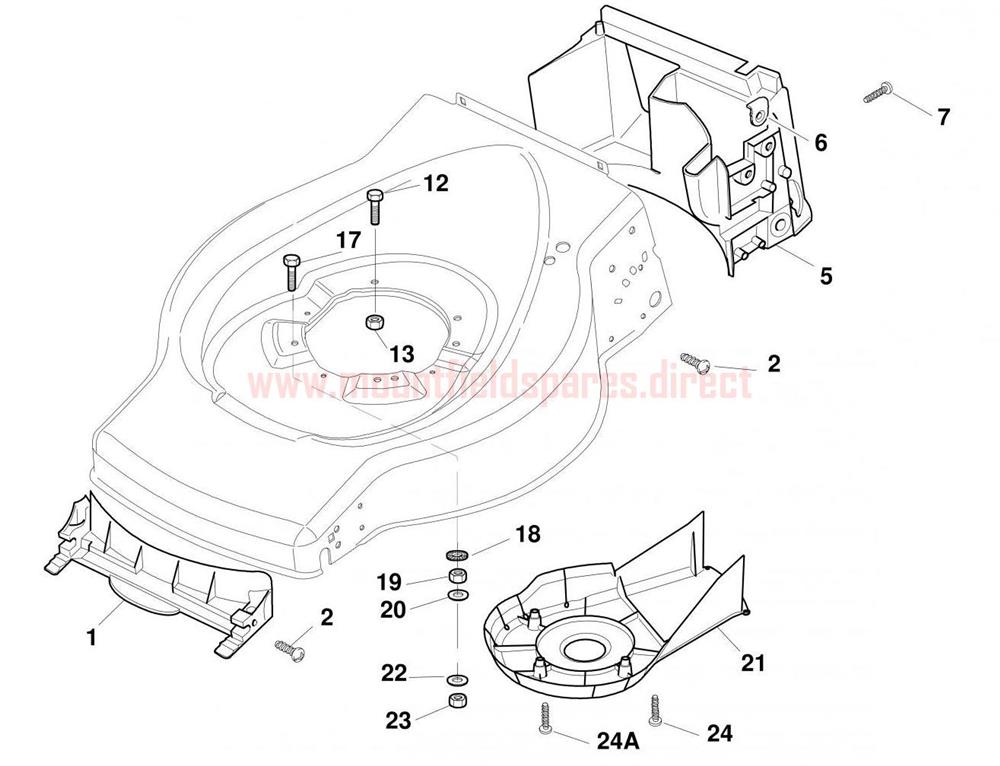

Chassis assembly details for Mountfield MIPL2010_20100311_SP536ES 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001322108271/0PLASTIC FRONT BAFFLE£13.20 Add to
002112728686/0TAPTITE SCREW KA50 X 16£1.65 Add to
005322108272/2PLASTIC REAR BAFFLE£17.88 Add to
006322545189/0HANDLE FIXING PLATE£2.76 Add to
007112728686/0TAPTITE SCREW KA50 X 16£1.65 Add to
012112793701/0HEX-HEAD SCREW M8 x 30£1.65 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
017112691115/0HEX-HEAD SCREW M8 x 40£2.76 Add to
018112540060/0SERRATED LOCK WASHER M8£2.76 Add to
019112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
020122671651/0WASHER 8.3 x 22 x 2£3.00 Add to
021322060222/0BELT PROTECTION GUARD [ES53 TR]£9.12 Add to
023112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
024112728686/0TAPTITE SCREW KA50 X 16£1.65 Add to
24A112728530/0SELF-TAP SCREW 4.8 x 25£1.65 Add to
