Rear Drive

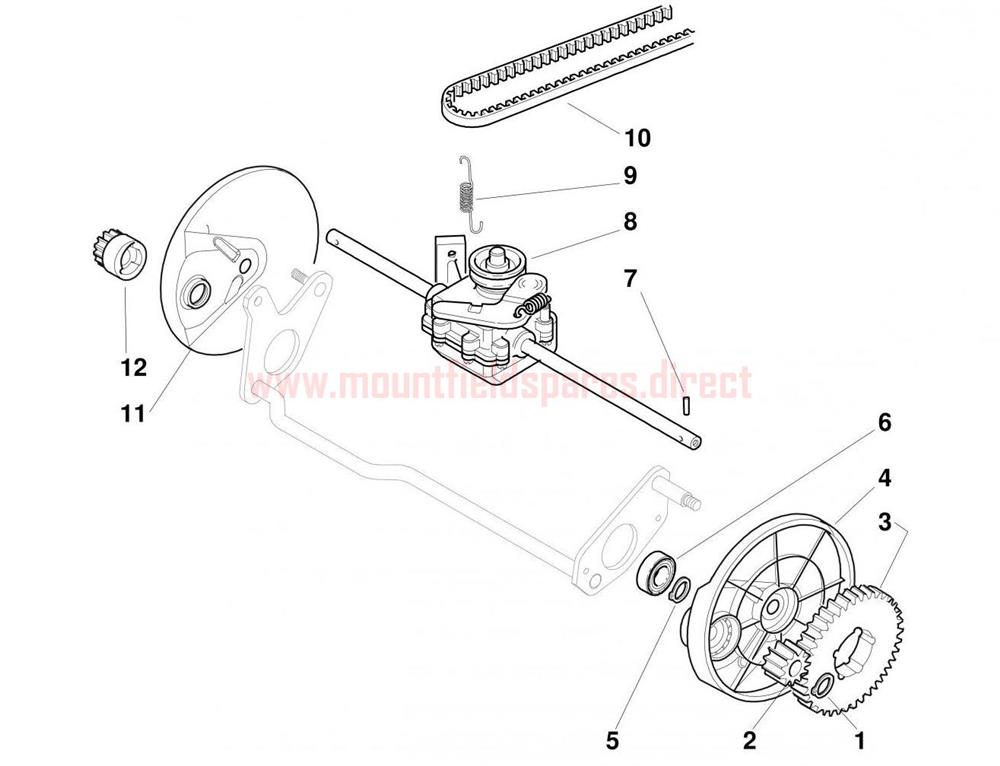

Rear Drive assembly details for Mountfield MIPL2010_20100311_MULTICLIP501SP 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112608600/0CIRCLIP D=12£1.98 Add to
002122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.33 Add to
003122120105/1DRIVE GEAR WHEEL£10.30 Add to
004122600092/0RIGHT WHEEL COVER£3.51 Add to
005112608600/0CIRCLIP D=12£1.98 Add to
006119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.65 Add to
007122753000/0PIN D=5.2 x 25.65£1.96 Add to
008181003095/0GEARBOX [BLACK] DOG CLUTCH£92.41 Add to
009122450437/0SPRING£3.38 Add to
010135063902/1TRAPEZOIDAL BELT Z 29.5 LP=772£11.66 Add to
011122600093/0LEFT WHEEL COVER£3.51 Add to
012122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.11 Add to
