Handle, Lower Part

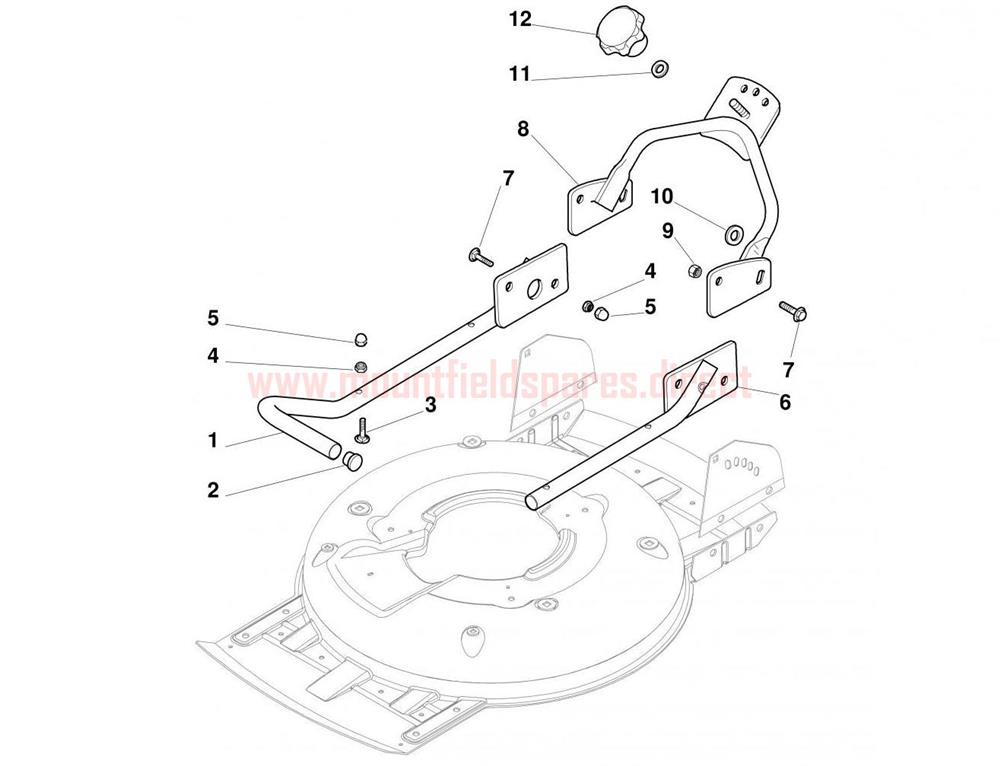

Handle, Lower Part assembly details for Mountfield MIPL2010_20100311_MULTICLIP501SP 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006377/0	R/H LOWER HANDLE [BLACK] MCS50	£37.08	Add to
002	118566114/0	HANDLE CAP [BLACK]	£2.06	Add to
003	112819100/0	CARRIAGE BOLT M8 x 40	£2.06	Add to
004	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
005	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
006	381006379/0	L/H LOWER HANDLE [BLACK] MCS50	£38.44	Add to
007	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
008	381006365/1	LOWER HANDLE PART MC/MCS BLACK	£70.31	Add to
009	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
011	112523080/0	WASHER M10 11 x 30 x 2.5	£2.06	Add to
012	322399813/0	HANDLE KNOB [BLACK]	£20.89	Add to
